6000kg/H Quality Assurance Waste Plastic Pet Bottles Washing Recycling Line

Product Description

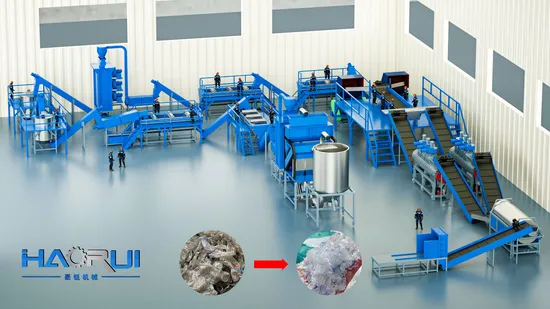

6000kg/h Quality Assurance Waste Plastic Pet Bottles Washing Recycling Line
This 6000kg/h PET bottle washing line were installed in Turkey.
PET bottle will be through crushing, washing , drying then the finally product is clean and dry PET flakes.Flakes size:12mm
they will produce the PET flakes into fibre. The level can be also food grade .
"HAORUI"series of products as following:
1.PET bottle washing line and granulator machine , capacity :1000~7000kg/h
2.HDPE LDPE film/woven bag washing line and pelletizing machine Capacity:300~2000kg/h
3.rigid PP bottle/bucket/ basin/drum washing line and pelletizing machine capacity:300~3000kg/h

machine	6000kg/h Quality Assurance Waste Plastic Pet Bottles Washing Recycling Line
Solution	Clean PET flakes
Flakes size	12~16mm
Machine size	80m*18m*8m
Energy consumption	600kw/h
Water consumption	4tons/h(can be recycled)
Electrical	380V 50HZ or according to customers' design
Workers	Feeding PET bales workers by forklift:2persons Sorting material:10~15 persons Collecting final material:2 persons Manager:1~2 persons

please check our machines in detail
machine list: bale breaker --belt conveyor with metal detector---belt conveyor--trommel screen ---belt conveyor--label remover--sorting platform--
PET crusher (two sets)--floating tank --screw loader--floating tank --pvc separator--hot washing tank--screw loader--hot washing --screw loader--floating tank --screw loader--floating tank--dewatering machine--pvc separator--silo

machine	PET bottle bale breaker , make the PET bale break to loose before crushing
bale size	1200mm*900mm*850mm / 1130mm*600mm*800mm
capacity	more than 3000kg/h
machine size	4.8M(L)*1.5M(W)*2.5M(H)

machine	belt conveyor with metal detector (conveyor the plastic material into next machine )
belt material	rubber or pvc
machine size	1000mm (W)*8000mm(L)

machine	trommel screen (material sorting is controlled by the size of particle size), separate the stone,sand ,metal ,etc
size	roller diameter:1500mm Length:5000mm
roller speed	≤ 130RPM
bottom design	cone

welcome to send me feedbackhttps://haoruijixie.en.made-in-china.com/contact-info.html

machine	label remover
function	Seperate the label of the PET bottles
Shaft length:6000mm	Tube Dia:800mm
Knife material	alloy
capacity	3000kg/h

machine	plastic crusher
function	crush the PET bottle into different size flakes with water ,high capacity
machine size	2300mm*2600mm*3600mm
capacity	more than 3000kg/h
motor	110kw

machine	floating tank
function	wash the PET flakes in cold water
number of roller wheel	4pcs
dimension	6m(L)*2.3m(W)*1.2m(H)

machine	hot washing tank( wash the PET flakes in hot water,the flakes will be more clean )
heating type	gas,steam ,coal, electromagnetism
size	2.2m(Dia.)*3.5m
Water temperature	Around 90ºC

machine	pvc separator(remove the pvc ,PE label from the PET flakes,PET flakes will be more pure )
air blower	3sets
blower motor	2.2kw
Pvc separator ratio	0.03%

the final product: PET falkes
flakes data:
size:10~16mm
moisture:less than 1%
pvc content:0-50ppm
glue:0-50ppm
PET flakes can be manufacture into :

---
