Laser Cladding Machine High-Speed Laser Cladding Machine for Hydraulic Support Laser Cladding Machine for Inner Wall Laser Cladding Machine for Repair

Product Description

Laser Cladding Machine High-speed Laser Cladding Machine for Hydraulic Support Laser Cladding Machine for Inner Wall Laser Cladding Machine for Repair
Fiber Laser Cladding Machine Brief Introduction:
The alloy powder is added into the laser melting pool by the synchronous powder feeding method, with small dilution rate of the cladding layer. The interface is in metallurgical bonding state, and is characterized by small workpiece deformation and small machining allowance. The cladding layer is free of porosity and crack defects with the hardness optional in HRC20-60, and has excellent wear resistance and corrosion resistance, which is suitable for the cladding manufacturing or re-manufacturing of various complex shape parts. The efficiency of high-speed fiber laser cladding machine can reach 40 minutes/m2.
After years of research and development of laser cladding technology, Wuhan Raylas has deeply understood the processing requirements of various industries, and developed advanced technologies such as wide spot laser cladding, ultra-high speed laser cladding and inner hole laser cladding. It is suitable for the process requirements of different production lines of clients, effectively improving the product quality for clients and reducing the comprehensive operation cost.
Customer Benefits:
Compared with the repair methods such as machining and manual arc welding, laser cladding has the characteristics of high reliability, outstanding processing efficiency, diversified process and low production cost.
Application Area of Fiber Laser Cladding Machine:
Laser cladding machine can be used in metallurgy, electric power, petroleum, chemical industry, ship, naval vessels, locomotive, coal machine, automobile and other industries, with stable and reliable product quality after cladding or re-manufacturing, lower cost and good social effects.
Technical Parameters for Fiber Laser Cladding Machine:

Content	Parameters
Laser	3KW-20KW, fiber, semiconductor, disc, etc.
Robot	Holding weight 16-150kg, wingspan 1600-3700mm, KUKA, ABB, FANUC, YASKAWA, etc.
Laser Processing Head	0.8-50mm round, square spot, size can be customized, coaxial, paraxonic powder feeder
Powder Feeder	Airborne, gravity conveying, powder feeding accuracy ≤±2%, powder feeding amount 10-150 g/min, single unit, double units
Cooling-water Machine	Single temperature, dual temperature, cooling capacity according to laser selection
Optional Accessories	Inner hole cladding head, temperature closed loop, on-line detection, distance detection, offline programming, molten pool monitoring, etc.
Power Supply	360-480V 3 Phase 50HZ/60HZ

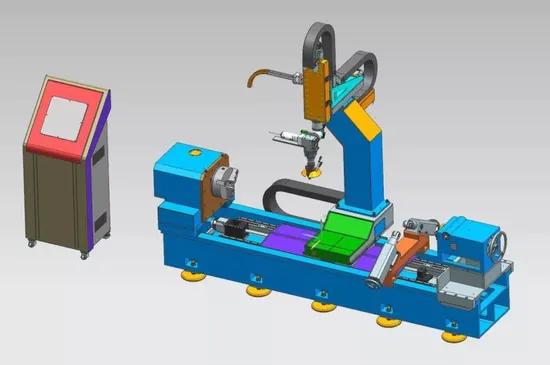

Robot Laser Cladding Machine:
Laser Cladding Machine with Single Work Station:
Laser Cladding Machine with Double Work Station:
Laser Cladding Machine with Cover:
Laser Cladding Machine with Cover.
Laser cladding machine is a specialized industrial device used to enhance the surface properties of metal components. lt utilizes laser technology to deposit a layer of material onto the substrate, improving characteristics such as wear resistance, corrosion resistance, and overal durability. The process involves melting the coating material and the substrate surface to form a strong metallurgical bond. It is with high precision, efficiency, and reliability. Laser cladding technolgoy is a good choice for many industrial applications.

Laser Cladding Machine and Laser Welding Machine:
Laser Welding Machine and Laser Cladding Machine.
It is a customized processing system according to customer's specific requirements.
Laser Cladding Head and Powder Feeder:
Laser Cladding Samples of Fiber Laser Cladding Machine:

---
