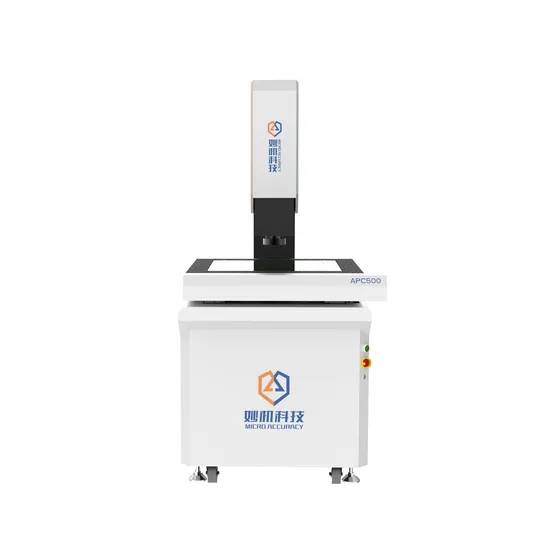

500mm*400mm Stroke Non-Contact CNC Video Measuring Machine APC500

Product Description

Non-Contact CNC Video Measuring System APC500
Introduction
Automated Precision Checking APC series are automated type non-contact optical measurement device, it is with beautiful and generous structure. Combined with our CNC metrology software, the inspect device can achieve batch measurement with high efficiency.
Features
• X,Y and Z axis of CNC measuring instrument are controlled by Panasonic servo motor, with high positioning accuracy and smooth movement
• Joystick and mouse operation, easy to use
• High-hardness, high-precision and non-deformable granite base and upright columns are stable, durable and elegant
• Programmable LED cold lights adopted for surface lamps can carry out surface measurement for various complicated work-pieces, with higher measurement accuracy
• Optional HEIDENHAIN high-precision non-touch grating scale
• Fully automatic zoom lens, no need re-calibrate when changing magnification, save calibration time and avoid human error
• Optional Renishaw contact probe MCP or TP6 for height, depth and other 3D measurement
• Optional customization lifting illumination, product outline display is clearer, and grabbing is more precise
• Optional KEYENCE laser displacement sensor for roughness, flatness surface measurement
Specifications

Model		APC300		APC400		APC500
Stage Size (mm)		506*356		606*456		756*656
Glass Size (mm)		330*230		430*330		530*430
Travel (mm)	X axis	300		400		500
	Y axis	200		300		400
	Z axis	200		200		200
Driving System		CNC(Servo Motor Control)
Load(KG)		15	20		25
Speed		280 mm/s
Resolution of X/Y/Z-axis		0.001 mm (1μm)
Positioning Accuracy		0.001 mm (2 μm)
Accuracy		(2.0 + L/200 )μm L=Measuring lenght(mm)
Software		LeaderView Automated Metrology softwae
Video System		• CCD Camera: High resolution CCD camera • Zoom Lens: 0.7X-4.5X
Illumination		Counter illumination: programmable light source Reflective illumination: programmable LED ring light
Weight (KG)		260		320		380
Power Supply		110V-120V/220V-240V AV, 50/60 Hz

Quality System 1. Establish the quality management system based on ISO9001, improve quality inspection, and ensure that all the finished products are qualified.
2. All our measuring machines are with CE certification
3. All our measuring machines are assembled and adjusted with linear accuracy, so that the instrument accuracy is guaranteed by hardware assembly and adjustment to the greatest extent.
4. Our professional technical service team is familiar with the principle, structure, assembly, and software debugging of the instrument, freeing customers from worries!
5. We has provided professional and complete measurement solutions for many large and medium-sized enterprises at home and abroad, and
has won the trust of customers!
After-sale Service
1. Free professional operation training
2. Warranty: 18 months instead of 12 months
3. Regularly upgrade of software is available free
4. Available lifetime technical support
Machines are ready for dispatch
Exhibition room

---
