Zmde H Beam Steel Plate Processing 3D CNC Drilling Machine

Product Description

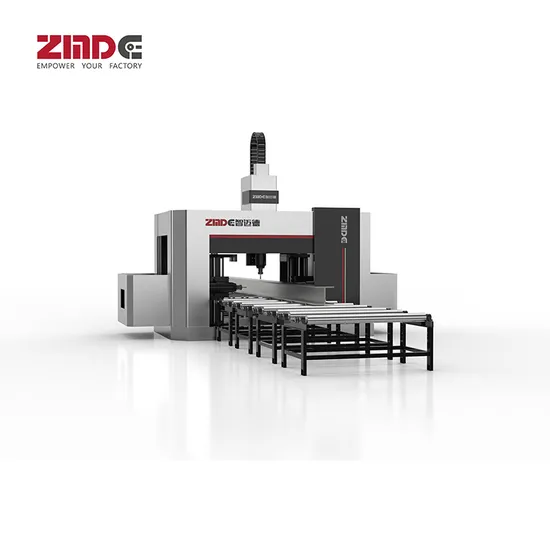

ZMDE H Beam Steel Plate Processing 3D CNC Drilling Machine
Technical Parameters

Item.	Model.	Machine Technical.
CNC 3D drill	ZMD-GSWZ10070/3A	1.H-beam: 150x80~1000x700mm 2.U-beam: 150x80~1000x400mm 3.Box beam: 150x80~1000x400mm 4.Thickness: ≤80mm 5.Length: 12m 6. Short material limit: automatic processing ≥ 3000mm 7.Manual processing: 690~3000mm 8.Power source: AC 380V 50HZ 3-phase

The device can drill precise holes on three sides of H-beam steel simultaneously. It has 7 CNC axis, CAD/CAM directly generated processing program. The maximum H-beam section size (belly height × wing width) is 1000×500mm, and the maximum drilling diameter is 33.5mm. The control system consists of computer numerical control system,AC servo system, photoelectric encoder, PLC and so on. Simply input the size of theworkpiece can automatically generate the machining program, and can also be stored,recalled, displayed and processed by the part number at any time.

More Machine Configuration (Due to different product models, the actual product may differ slightly from the picture)
Machine Model		ZMD-SWZ-74-A
H Beam Processing range(mm)		150×100-700×400
Automatic feeding length(mm)		1500-12000
Max. Web plate thickness(mm)		≤40
Max. weight of workpiece(kg)		4000
Number of drilling spindles		3×3=9
Spindle speed range(r/min)		180-720
Axial working speed(mm/min)		20-200
pper unit spindle feed travel distance(mm)		220
Max. drilling diameter(mm)		Φ33.5
Total power(kw)		≈30
Equipment Dimension L×W×H(mm)		28000×4220×3220

Company Profile
ZMDE Co.,Ltd. was founded in 2013, is an assembly building intelligent equipment research and development, manufacturing, sales and service as one of the high-tech enterprises, national specialization, speciality and new "small giants" enterprises, the core industry consists of steel structure assembly building intelligent industrial mother machine and industry IOT and intelligent control system two plates.
The headquarter base of the company is located in Lingang New Area, Pudong New District, Shanghai, which contains the Research Institute of Artificial Intelligence for Assembled Buildings with a floor area of 32,000 square meters, mainly undertaking the company's management and the research and development functions of high-end core technologies of Artifificial Intelligence for Assembled Buildings, Intelligent Buildings, and Industrial Internet of Things (IoT).
The Shandong base is located in Weicheng District, Weifang City, which mainly researches, develops and produces intelligent industrial mother machine for steel beams of assembled buildings and intelligent industrial mother machine for walls of assembled buildings.
FAQ
1.Q: What is the minimum order quantity?
A: 1PCS.

2.Q: What are the payment terms?
A: L/C; T/T.

3.Q: How long is the delivery time?
A: 30 Days.

4.Q:How long is the warranty period?
A: 1 Year.(Original Manufacturers. equipment parts can be achieved lifelong maintenance)

---
