| Negotiable | 1 Set (MOQ) |
| Drilling Machine |

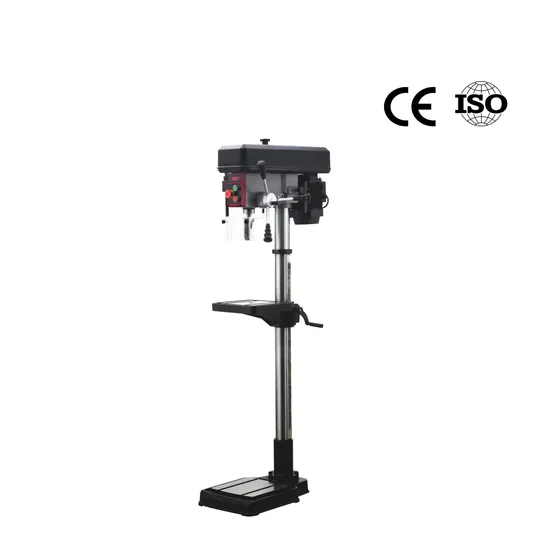

| Vertical Drilling Machine |
| Feature |
| Better rigidity due to construction by heavy solid cast iron after tempering failure processing. Excellent appearance due to surface treated by multi-process spray treatment. High precision due to highly processed operating table surface. Good wearing quality and long performance life. Harden and tempering treatment of spindle, gear and arbor. Steel made handle seat assembly. The machine is with front switch and emergency stop. Solid and secure safety guards. Good safety performance in accordance with the standard design of European and American countries. |
| Specifications | Z1520F |
| Max. drilling capacity | 20mm |
| Chuck capacity | B16 1~16mm |
| Column diameter | 73mm |
| Spindle travel | 85mm |
| Swing | 360mm |
| Max. distance spindle nose to table | 900mm |
| Max. distance spindle nose to base | 1210mm |
| Spindle taper | B16 |
| Spindle speed range | 200~2400rpm |
| Step of spindle speed | 5 |
| Table size | 280x280mm |
| Base size | 520x330mm |
| Overall height | 1620mm |
| Motor power | 550W |
| Weight | 90kg |
| Packing size | 1525x655x440mm |
