| US$36,500.00-38,500.00 | 1 Piece (MOQ) |

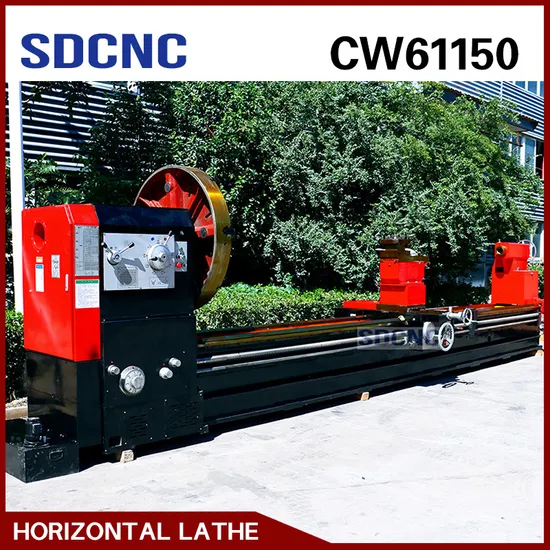

| SPECIFICATIONS | Units | CW61150 |
| Swing over bed | mm | 1500 |
| Swing over cross slide | mm | 1000 |
| Distance between centers | mm | 1500/2000/3000/ 4000/5000/6000 |
| Guideway width | mm | 755 |
| Max. load capacity | T | 6 |
| Spindle bore | mm | 130 |
| Spindle bore taper | - | Metric φ140/MT6 |
| Spindle nose type | - | A2-15 |
| Spindle speed steps | - | FWD. 21 steps |
| Spindle speed range | rpm | 3.15-315 |
| Chuck | mm | φ1000 4-jaw manual |
| Turret/tool post | - | Manual turret 4 position |
| Tool shank size | mm | 45 x 45 |
| X axis travel | mm | 620 |
| Z axis travel | mm | 1350/1850/2850/3850/4850/5850 |
| X axis feed steps /range | mm/r | 56/0.05-6 |
| Z axis feed steps /range | mm/r | 56/0.1-12 |
| X axis rapid traverse | mm/min | 1870 |
| Z axis rapid traverse | mm/min | 3740 |
| Metric thread kinds /range | mm | 44/1-120 |
| Inch thread kinds /range | T.P.I | 31/28-3/8 |
| Module thread kinds /range | mm | - |
| DP thread kinds /range | D.P. | - |
| Tailstock quill diameter | mm | φ160 |
| Tailstock quill taper | - | MT6 |
| Tailstock quill travel | mm | 300 |
| Main spindle motor | kW | 22 |
| Rapid traverse motor | kW | 1.5 |
| Coolant pump motor | kW | 0.125 |
| Weight for 1500 | kg | 11200 |
| Weight for 2000 | kg | 11700 |
| Weight for 3000 | kg | 12300 |
| Weight for 4000 | kg | 13300 |
| Weight for 5000 | kg | 14300 |
| Weight for 6000 | kg | 15300 |
| Dimension for 1500 | mm | 4600x2250x2050 |
| Dimension for 2000 | mm | 5100x2250x2050 |
| Dimension for 3000 | mm | 6100x2250x2050 |
| Dimension for 4000 | mm | 7100x2250x2050 |
| Dimension for 5000 | mm | 8100x2250x2050 |
| Dimension for 6000 | mm | 9100x2250x2050 |
