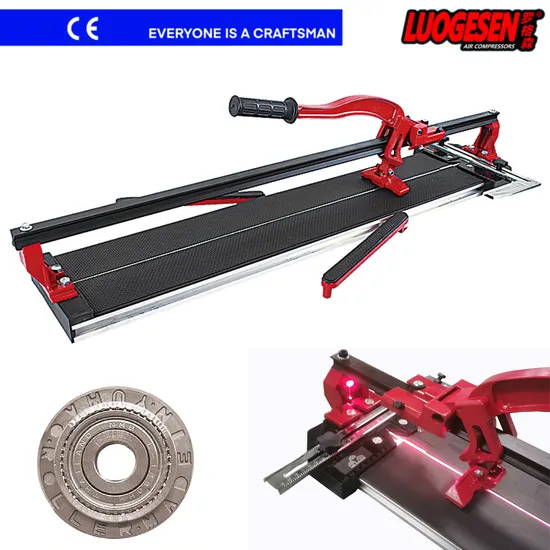

6 Flash Manual Cutting Wall Hand Tool Floor Laser Stone Porcelain Engraving Portable Machine Machinery Marble Auto Power Electric Ceramic Tile Cutter

Product Description

Item No	Material		Basic Size		Guide Rail			Cut thickness
			Width	Thickness	material		size		Cut Size
AS-600	Aluminium Support Stand, Hand, Body		200mm	1.4 mm	Aluminium	Solid	20x45mm	5-15mm	600mm/24"
AS-800				1.4 mm				Cut Size Narrowest	800mm/36"
AS-1000				1.8 mm					1000mm/40"
AS-1200				1.8 mm				40mm	1200mm/48"

Item No	Material		Basic Size		Guide Rail			Cut thickness	Cut Size
			Width	Thickness	material		size
ASC-600	Support Stand, Hand, Body+ 420D Nylon Carry Bag		200mm	1.4 mm	Aluminium	Solid	20x45mm	5-15mm	600mm/24"
ASC-800				1.4 mm				Cut Size Narrowest	800mm/36"
ASC-1000				1.8 mm				40mm	1000mm/40"

Laser Pointer
Monorail Type Push Cutter

Item No	Stand Material	Hand/body Material	Basic Size		Guide Rail			Cut thickness	Cut Size
			Width	Thickness	material		size
AD-600	Aluminium Support Stand	Aluminium Hand Aluminium Body	200mm	1.1-1.2 mm	201 Stainless Steel	HOLLOW	20mm	5-15mm	600mm
AD-800				1.1-1.2 mm					800mm
AD-1000				1.4 mm	Iron round steel	Solid			1000mm

Item No	Stand Material	Hand/body Material	Basic Size		Guide Rail			Cut thickness	Cut Size
			Width	Thickness	material		size
AD-600	Aluminium Support Stand	Aluminium Hand Aluminium Body	200mm	1.1-1.2mm	201 Stainless Steel	HOLLOW	20mm	5-15mm	600mm
AD-800				1.1-1.2mm					800mm
AD-1000				1.4mm	Iron round steel	Solid			1000mm

Item No	Stand Material	Hand/body Material	Basic Size		Guide Rail			Cut thickness	Cut Size
			Width	Thickness	material		size
AD-600	Aluminium Support Stand	Aluminium Hand Aluminium Body	200mm	1.1-1.2mm	201 Stainless Steel	HOLLOW	20mm	5-15mm	600mm
AD-800				1.1-1.2mm					800mm
AD-1000				1.4mm	Iron round steel	Solid			1000mm

Item No	Stand Material	Hand/body Material	Basic Size		Guide Rail			Cut thickness	Cut Size
			Width	Thickness	material		size
AD-600	Aluminium Support Stand	Aluminium Hand Aluminium Body	200mm	1.1-1.2mm	201 Stainless Steel	HOLLOW	20mm	5-15mm	600mm
AD-800				1.1-1.2mm					800mm
AD-1000				1.4mm	Iron round steel	Solid			1000mm

1)Aluminium Roller Pole:27mm
2)Nylon Silent Roller: 20Pcs
3) Aluminium Scale
4) Steel Pliers
5) YG6 TCT Cutter Refill

Item No	Specification		Cut thickness	Cut Size
AR-500	Aluminium Support Stand , Aluminium Hand Aluminium Body		5-15mm	500mm
AR-600				600mm

The new generation of all-steel tile cutting machine can easily cut polished brick, vitrified brick, antique brick, all-glazed brick, all-porcelain tile, all-steel brick, marble, microcrystalline tile (high-end microcrystalline stone glass surface greater than 0.7mm can not be cut).

Item No	Stand Material	/	Basic Size		Guide Rail			Cut thickness	Cut Size
		Hand/body Material	Width	Thickness	material		size
A600-A1150	Aluminium Support Stand	Aluminium Hand Aluminium Body	72mm	3.0mm	201 Stainless Steel	Hollow	20x40mm	6-15mm	600mm
						Solid
A800-A1150						Hollow			800mm
						Solid
A1000-A1150						Hollow			1000mm
						Solid
A1200-A1150						Hollow			1200mm
						Solid

Item No	Rated Power	Specification	Cut Size
F8-800	220V-240V/ 50-60HZ 1650W/ 2.2HP	Full aluminum body, laser positioning, precise cutting, zero error.	800mm
F8-1000			1000mm
F8-1200			1200mm
F8-1600			1600mm
F8-1800			1800mm

Manual ceramic tile cutting machinery is simple, environmental protection, clean, convenient, professional, precise, high quality and efficient. Features: No water, no electricity, no dust, no noise,successfully cut a tile in 3-5 seconds . Manual tile cutting machine no electricity, no dust, no noise, low loss. In this era of pursuing environmental protection, more and more construction personnel are aware of the serious harm caused by dust to their own health, as well as the huge impact of noise on the environment. Green manual tile cutting machine has come into people's life.
Manual Instruction
1) Open the free foot and tighten the nut
2) Adjust the size to be cut on the ruler rod, and tighten the fixing screw by hand after confirming.
3) Put the tile on the platform.
4)When cutting, first pull the push rod to the back end, let the blade gently press on the tile, push forward along the main shaft to the front control groove, put the box foot on the tile, gently hit the end of the push and pull handle, the tile can be broken with the knife mark.
Machine Characteristics
1)Fast cutting speed, several seconds to complete the job;
2)Good cutting effect, brick cutting straight, no collapse, high precision, smooth edge;
3)Low cutting cost, a cutter wheel can cut 50,000 to 70,000 meters;
4) No electricity, no water, no noise, no dust;
5)The operation is simple, convenient and safe.
Attention
1)When cutting, the thinner and shallower the cut marks, the more beautiful the edge of the tile will be after cracking. On the contrary, the deeper and thicker the cut marks, the more oblique and ugly the edge of the brick. Therefore, the force must be light when pushing, but the scratches on the tile can not be interrupted, otherwise, the tile will appear collapse Angle phenomenon.
2)Can only cut straight lines. Frequency Asked Question
1.Are you the manufacturer or trading company?
We are the manufacturer.
2.Where is your factory?
It is located in YONGKANG City,Zhejiang Province,China.
3.What's the terms of trade?
FOB,CFR,CIF or EXW are all acceptable.
4.What's the terms of payment?
T/T,L/C at sight or cash.
5.What's the lead time? In 15 days on receipt of deposit .
6.Do you accept sample order?
Yes,we accept.
7.What about the cost of sample?
You have to pay the freight charge.But the cost of product could be refundable,if you will purchase 1x20GP container in the future.

---
