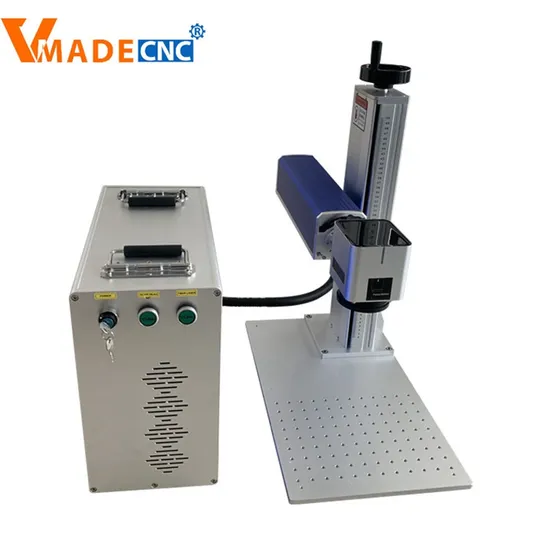

20W 30W 50W Raycus Laser Marker Fiber Laser Marking Machine

Product Description

20W 30W 50W Raycus Laser Marker Fiber Laser Marking Machine
Product Description
Fiber Laser Marking Machine suitable for Gold, Silver, Diamond, Sanitary Equipments, Foods Packing, Label, Beer label, Drink Label, Medicine Packing, Medical Equipments, Glasses and Clock, Auto Parts, Plastic& Paper Materials, The Electron, Hardware which with high request for depth, smooth,accuracy such as horologe, Mould, bitmap marking etc.
Detailed Images
Options
Technical Parameter

Technical Parameters
Laser Power	Raycus 20W	Raycus 30W	Raycus 50W	Raycus 100W
Pulsed fiber laser	P20QB	P30QB	P50QB	P100Q
Wavelength(nm)	1060~1085	1060~1085	1060~1085	1060~1085
Polarization	Random	Random	Random	Random
Optical isolator	Yes	Yes	Yes	Yes
Nominal average output power (W)	≥20	≥30	≥50	≥100
Single pulse energy (mJ)	1@20kHz	1@20kHz	1@20~50kHz	1@20~100kHz
Beam quality(M2 )	<1.5	<1.5	<1.5	≤1.6
Beam Diameter(mm)	6~8	6~8	6~8	6~8
Pulse duration(ns)	<120@20kHz	<120@30kHz	90-150@50kHz	50~130@100kHz
Pulse repetition rate(KHz)	20 - 60	30 - 60	50-100	20 - 200
Output Power Tunability(%)	10-100	10-100	10-100	10-100
Output Fiber Cable length(m)	2.0	2.0	2.0	2.0
Working voltage(VDC)	24±1	24±1	24±1	24±1
Power consumption(W)	200@20ºC	300@20ºC	340@20ºC	450@20ºC
Cooling	Forced Air Cooled	Forced Air Cooled	Forced Air Cooled	Forced Air Cooled
Dimension W×D×H(mm)	215×286×95	215×286×95	260×391×120	396×360×123
Operating temperature(ºC)	0~40	0~40	0~40	0~40
Store temperature(ºC)	-20~60	-20~60	-20~60	-20~60
Operating Humidity(%)	≤80%	≤80%	≤80%	≤80%
Marking Format	Graphics, text, bar codes, two-dimensional code, automatically marking the date, batch number, serial number, frequency, etc.
Graphic Format Supported	BMP, JPG, GIF, TGA, PNG, TIF, AI, DXF, DST, PLT, ETC.

Samples Picture
Package
Factory Show
Jinan Vmade CNC Machine Co.,Ltd was established in 2010. Located in hightech zone.It is a professional team which specialized in Optic, Electricity, Mechanics. Vmade keep delicate and attentive attitude on every step and always keep to learn the most advanced technology and create more humanized products to all our customers.
Contact Information
Please tell us what you need
1.What is your working size?
2.What material do you need to cut/engrave?
3. What is the thickness and size of each materials?
4.What is your business industry? signage or art craft works or what else ?
5.What is your full name,email,company name,website and contact number ?
If you have any questions, Please contact us

---
