2inch Electrical Stainless Steel Cast Iron Submersible Sewage Water Pump

Product Description

Product Description

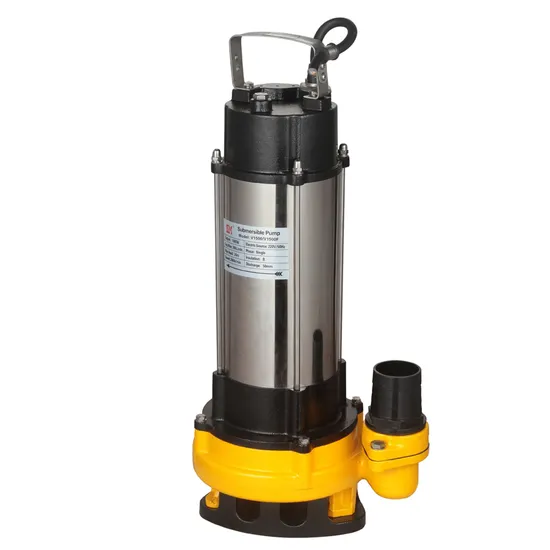

Electrical Stainless Steel Pump V1500F
Materials:
Pump body: Cast iron
Motor housing: Stainless steel
Impeller: Cast iron
Mechanical seal: Ceramic-Graphite/Silicon carbide
Shaft: 45# steel/SS 420
Bearing: Steel
RANGE OF PERFORMANCE
Flow rate up to 30m3/h
Head up to 24m
LIMITS OF USE
Depth up to 5 m
Liquid temperature up to + 40° C
Passage of suspended solid bodies up to Ø 0.2 mm
The pH figure of the water is between 6.5~8.5
APPLICATION
SPA pumps are suitable for use with clear water that does not contain abrasive particles. THESE PUMPS ARE OUTSTANDING IN THEIR RELIABILITY IN FIXED INSTALLATIONS WITH AUTOMATIC OPERATION

MOEDL	INCH	kw	M Flow	M head
V180F	1'' /1.2''/1.5''	0.18	7.9m3/h	6m
V250F	1'' /1.2''/1.5''	0.25	99m3/h	7.5m
V370F	1.5''	0.37	9.69m3/h	9m
V450F	2''	0.45	15.6m3/h	9m
V550F	2''	0.55	16.8m3/h	10m
V750F	2''	0.75	18m3/h	12m
V750F	3''	0.75	30m3/h	10m
V1100F	2''	1.1	21m3/h	13m
V1500F	2''	1.5	18m3/h	24m
V1500F	3''	1.5	30m3/h	18m
V2200F	3''	2.2	45m3/h	34m
V2200F	4''	2.2	49m3/h	37m

FAQ
Q1 What's the MOQ for your production?
A:The MOQ is 300 pcs/set
Q2 Is it all right to make customer's own brand name?
A: Yes. In addition to the stable products,OEM & ODM accepted. Please contact us for details.
Q3 Are you a manufacture or trading company?
A: Our company is a professional manufacturer and trader that is concerned with the design,development
and production
Q4 What is your terms of payment?
A:Normally ,its 40% T/T as deposit ,and 60% before delivery. We'll show you the photos of the products and packages before pay the balance. Also L/C is acceptable.
Q5 What is your terms of delivery?
A:EXW.FOB.CFR,CIF
Q6 How about your delivery time?
A: After receive the deposit:
- Sample order:within 10-15 days;
- 20FT container: 20-25 days;
- 40HQ container: 30-35 days
Q7 Are you support samples?
A:Yes,We support.
Q8.How about after-sales service?
A:1.About 1 year guarantee service.
2.English manual for installation & operation.
3.If required, we could send technicians for installation or by video to solve problem.

---
