Competitive Price Advertising Wood 1325 CNC Engraving Router Machine with Handle Controller

Product Description

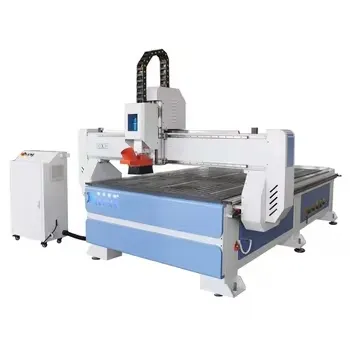

Competitive Price Advertising Wood 1325 CNC Engraving Router Machine With Handle Controller
Product Description
Competitive Price Advertising Wood 1325 CNC Engraving Router Machine With Handle Controller, it has 1300x2500mm working size, 3.5kw air cooling spindle,stepper motor and DSP A11 controller. As an economical machine, it has Very cost-effective rate. From the appearance point of view, this machine has a beautiful shape and mild color. From the quality point of view, it is very durable and of high quality.
Application
1.Wood-working industry
Ideally suitable for furniture (Wave plate, fine pattern, antique furniture, sofa legs, headboards) musical instruments, wooden crafts, cabinet, windows, night table, kitchen doors, wooden door, MDF door, screen, craft sash, composite gates, cupboard doors, interior doors and so on.
2. Decoration industry
Art model, wall art, screen relief engraving and cutting, decoration processing, gifts wrapping, waved plate, electrical cabinets panels, sports equipment, and other wooden industrial products
3. Advertisement
Advertising identification, sign making, Acrylic, double color plate, PVC, ABS board, aluminum plate, density board, artificial stone, organic glass, soft metals like aluminum and copper, cut matrix, character, signs, trademark etc
4. Die industry A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.
Product Parameters

Model		KK1325
XYZ working area		1,300 x 2,550 x 200mm
XY movement		Rack and pinion, gear drive/Taiwan
Z movement		Ball screw drive/Germany
Repositioning resolution		0.02mm
Max. speed		35,000mm/min
Max. cutting speed		25,000mm/min
Table		T-slot vacuum table
Spindle		3.5kw Chinese air cooling
Spindle speed		18,000rpm
Inverter		3.7 KW
Motor and driver		Stepper motor and leadshine driver
Control system		DSP A11
Working voltage		AC380V/50-60Hz, 3-phase
Software		Artcam & Type3
Command code		G code
Standard equipment included		1. Auto tool surface sensor 2. Manual oil lubrication system 3. Dust hood 4. T-slot vacuum table 5. Regenerative blower 7.5Kw

ball screw Taiwan TBI
(TBI, Taiwan) produce C5 class ball screw,
precision is less than 0.03mm,Ball screw has dust prove device on both ends and both Layers, may completely isolate dust, and then prolong life.

DSPA11 Handheld controller
New three-axis linkage motion mode to achieve comprehensive controlling
Support drive and spindle error alarm function
Large storage space, perfect U disk compatibility, fast reading speed, safe and reliable U disk-processing.
Support intelligent file checking function.

Oil lubrication system
a central oiler
Note:It is recommended that one pump of the oiler once a month will be sufficient to keep your machine lubricated.
When the oil tank needs filling,top up with a good quality
SAE 30 weight oil.

Vacuum Table T-Slots
The vacuum table has T-slot mounting devices incorporated into the tables to enable fixtures and material blanks to be clamped directly to the table. Clamps are provided.

4.5kw air cooling spindle
18000rpm
Application: Milling,Engraving,Drilling
Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.

vacuum pump 7.5kw-option
No oily odors.,Low noise and libration,Maintenance-free.
High pressure and low noise
Max dutput480³/h
Max pressure -440/500mba
speed 28000rpm

Packaging & Shipping
After Sales Service
Our Advantages
Company Profile
1. Jinan QUICK specializes in the research and development of woodworking engraving machines. It has been manufacturing for 14 years. Our company covers an area of 1600 square meters and has more than 200 employees. It has independent machine body processing workshops and machine assembly workshops. QUICK is a powerful company. Every production process of our machine has strict quality inspection and has obtained CE, ISO and other certifications.
2. Our woodworking engraving machines are sold to more than 90 countries worldwide, and we have agents in many countries such as the United States, Canada, Mexico, Malaysia, Indonesia, Russia, the United Kingdom, South Korea......

---
