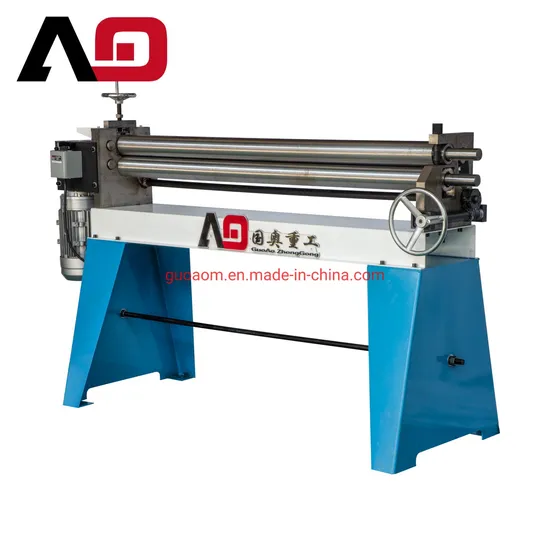

HVAC Round Tube Metal Sheet Asymmetrical 3 Roller Bending Machine Electric Steel Plate Rolling Machine Hydraulic Roll Bender Roll Former

US$500.00 1 Set (MOQ)

Basic Info.

Model NO.
W11G-2*1000
Condition
New
Certification
ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Type
Roller-Bending Machine
Transport Package
Standard Export Wooden Case
Trademark
GUOAO
Origin
China
HS Code
8462299000
Production Capacity
2000sets/Year

Product Description

Product Description This series of winding machine is suitable for the winding work of the plate. When rolling, the metal sheet material can be rolled into a cylinder shape first, and then welded, can be made into ventilation, water, smoke exhaust, exhaust and other functions of the pipeline, hardware products.
This product has the characteristics of small size, simple structure, easy operation, light weight, easy to move, etc. (by its can be made into universal shaft type according to customer requirements).
Processing features: roll plate is suitable, parts deformation uniform, after processing, parts can be fully stress diffusion, not easy to make the surface production hardening phenomenon, can maintain the original performance of the plate, greatly better than the manual beating into the pipeline, so widely used.
Structure
1. Switch
2. Motor reducer
3. upper roller adjust handwheel
4. side roller adjust handwheel
5. bottom roller adjust screw
6. upper roller orientation pin 7. roller
Specifications
Model Thickness Width Moto Dimension
W11G-4*600 3mm 600mm 1.5kw 980*510*970
W11G-2*1000 2mm 1000mm 1.5kw 1380*510*970
W11G-1.5*1300 1.5mm 1300mm 1.5kw 1680*510*970
W11G-1.2*1530 1.2mm 1530mm 1.5kw 1880*510*970
