US$15,000.00-30,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Casting
One- Piece Casting
Swing Over Cross Slide
300mm
Spindle Speed Steps
Stepless
Turret/Tool Post
8 Station Hydraulic Turret
Transport Package
Plywood Case
Specification
2200*1600*1850mm
Packaging & Delivery
Package Size
280.00cm * 190.00cm * 190.00cm
Package Gross Weight
4000.000kg
Product Description
Product Description
Machine Tck56A Tck66A Horizontal Slant Bed CNC Lathe price

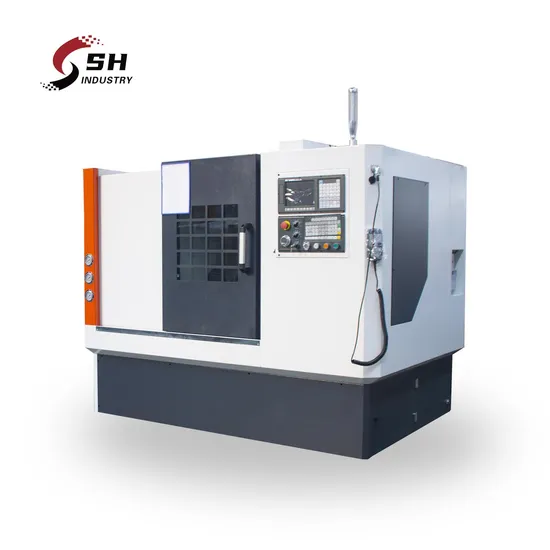

Realistic photos
Product features:
Highest accuracy Taiwan linear guide ways Higher speed spindle unit ,optional homemade spindle Higher rigidity cast iron Integrated automatic lubrication One-piece casting slant bed cnc lathe Application : The machine is suitable for automobile, motorcycle, electronics, aerospace,oil and other industries, for rotary parts of conical surface, circular arc surface, surface and various inch screw thread batch, efficient, high precision automatic processing, with 45 degrees high rigidity of the whole bed, large torque spindle by Taiwan rail line, ensure that the machine is high rigidity, spindle near the center of the manipulator, the workpiece loading and unloading more convenient. Product Parameters
Main technical specifications:
| SPECIFICATIONS | SPECIFICATIONS | Units | TCK56A |
| Swing over bed | mm | 560 |
| Swing over cross slide | mm | 300 |
| Distance between centers | mm | 500/1000 |
| Spindle bore | mm | 65 |
| Bar capacity | mm | 50 |
| Spindle nose type | - | A2-6 |
| Spindle speed steps | - | Stepless |
| Spindle speed range | rpm | 3500 |
| Turret/tool post | - | 8 station Hydraulic turret |
| Tool size | mm | 25 x 25 |
| X axis travel | mm | 200 |
| Z axis travel | mm | 550/1050 |
| X axis rapid traverse | mm/min | 18000 |
| Z axis rapid traverse | mm/min | 18000 |
| Main spindle motor | kw | 11 |
| Tailstock quill diameter | mm | 75 |
| Tailstock quill taper | - | MT5 |
| Tailstock quill travel | mm | 450 |
| Guide rail type | - | Slant bed linear rail |
| Machine weight | kg | 4000 |
| Overall dimension | mm | 2800x1900x1900 |
Detailed Photos
>>
