Vertical Wood Band Saw Cutting Machine Timber Sawmill Machinery

Product Description

Product Description

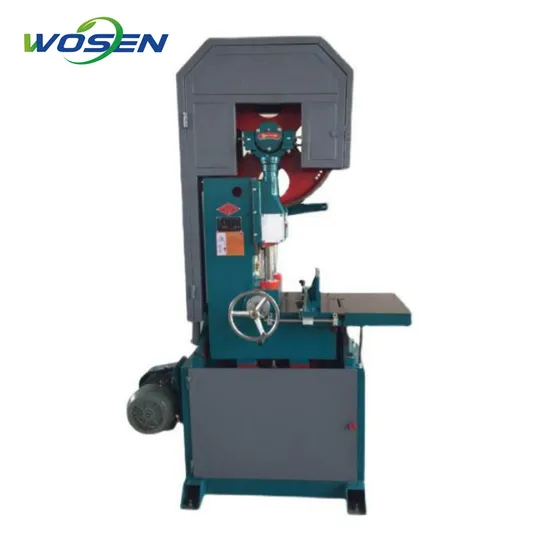

Vertical Band Sawmill With Table

Technical Parameter	MJ328	MJ329	MJ3210
Saw Wheel Diameter	800mm	900mm	1000mm
Saw Wheel Width	110mm	120mm	120mm
Saw Wheel Speed	750r·p·m	750r·p·m	750r·p·m
Saw Wheel& Clip Model	Manual	Manual	Manual
Saw Blade Length	5700mm	6400mm	6800mm
Max Sawing Wood Width*Height	300x600mm	300x700mm	300x800mm
Main Motor Power	11kw	15kw	22kw
Weight	1000kg	1300kg	1600kg

Related Machines
1.MJ329 Vertical Band Sawmill With Carriage

Model	MJ329-E3000/E5000	MJ329-CNC3000/CNC5000
Saw Wheel Diameter	900mm	900mm
Max Sawing Wood Diameter	700mm	700mm
Saw Blade Length	6400*125*1.05mm	6400*125*1.05mm
Saw Clip And Wheel Up and Down	Manual	Manual
Main Motor Power	15 KW	15 KW
Carriage Length	3000mm/5000mm	3000mm/5000mm
Max Sawing Wood Length	3000mm/5000mm	3000mm/5000mm
Wood Grasp Clip Quantity	Manual x 3 PCS	Pneumatic x 3 PCS
Log Rotation	Not including	Not including
Carriage Forward/Backward	Electric	Electric
Sawing Thickness Setting	Electric	Touch Screen
Weight	2000kg	2000kg

2.MJ3210 Vertical Band Sawmill With Log Carriage

Specification	MJ3210-E3000/E5000	MJ3210-CNC3000/E5000
Saw Wheel Diameter	1000mm	1000mm
Max Sawing Wood Diameter	800mm	800mm
Saw Blade Length	6900*125*1.05mm	6900*125*1.05mm
Saw Clip And Wheel Up and Down	Electric	Electric
Main Motor Power	22KW	22KW
Carriage Length	3000mm/5000mm	3000mm/5000mm
Max Sawing Wood Length	3000mm/5000mm	3000mm/5000mm
Wood Grasp Clip Quantity	Manual x 3 PCS	Pneumatic x 3 PCS
Carriage Forward/Backward	Electric Type	Electric Type
Sawing Thickness Setting	Electric Type	Touch Screen
Weight	3000kg	3000kg

3.MJ3210A Vertical Band Sawmill With Carriage

Specification	MJ3210A-E3000/E5000	MJ3210A-CNC3000/CNC5000
Saw Wheel Diameter	1000mm	1000mm
Max Sawing Wood Diameter	1000mm	1000mm
Saw Blade Length	7300*125*1.25mm	7300*125*1.25mm
Saw Clip And Wheel Up and Down	Electric	Electric
Main Motor Power	30 KW	30 KW
Carriage Length	3000mm/5000mm	3000mm/5000mm
Max Sawing Wood Length	3000mm/5000mm	3000mm/5000mm
Wood Grasp Clip Quantity	Manual x 4 PCS	Pneumatic x 4 PCS
Carriage Forward/Backward	Electric Type	Electric Type
Sawing Thickness Setting	Electric Type	Touch Screen
Weight	5000kg	6000kg

4.Square Timber Cutting Multiple Blade Rip Saw

Model	FM60	FM80	FM100	FM120	FM150	FM200	FM250	FM300
Process Height	0-60mm	30-80mm	40-100mm	50-120mm	60-150mm	90-200mm	110-250mm	150-290mm
Process Width	250/300/400mm
Blade Diameter	150mm	180mm	210mm	230mm	255mm	355mm	380mm	455mm
Main Motor	18.5KW*2	22KW*2	22KW*2	22/30KW	22/30KW	37KW*2	45KW*2	55KW*2
Weight	1190kg	1260kg	1420kg	1560kg	1620kg	2550kg	2580kg	2700kg

5.Multiple Blade Sawmill With Laser

Model	QB30-500	QB50-500	QB50-800	QB70-900
Max. Cutting Height	30mm	50mm	50mm	70mm
Max. Cutting Wood Width	500mm	500mm	800mm	900mm
Blade Diameter	160mm	210mm	210mm	255mm
Feeding Type	Belt	Belt	Belt	Press Roller
Main Motor	7.5KW	11KW	15KW	22KW
Overall Size	1320*850*1350	1350*850*1350	1350*950*1350	2200*1350*1600
Weight	400kg	510kg	730kg	1580kg

Company Profile
Our company is China leading manufacturer of woodworking machinery,we are able to offer professional woodworking machinery to customers.
Our products are mainly included wood crusher,band saw, circular sawmill, wood pallet machine, wood pellet machine, wood planer, production line and so on. We have exported our machines to more than 70 countries and regions around the world, such as Southeast Asia, North America, South America, Africa, Europe, Middle East, Australia, Russia and so on.
In order to meet different requirements of customers, we have been constantly developing and improving product technology, quality and after-sale service. And we able to customize machine according to customer requirements, so it has won the favor of many customers.
If you are interested in our machine, please feel free to contact us.
Our Workshop
FAQ
1.What is the machine delivery time ?Delivery time is 10-15 days.2.What is the payment term ?Payment term is 30% TT advance and balance before delivery machine.3.Could the machine customized according to client requirements ?Yes, can customize according to client requirements.4.What terms of trade can provide?We accept EXW, FOB, CIF, Express Delivery.5. What is your company business scope ?Our company main sell woodworking machine, including wood crusher, wood sawmill, wood pallet machine, wood pellet machine, drying kiln, wood planer and so on.

Packaging & Shipping

---
