Fiber Optic Splicing Equipment T-3X Max

Product Description

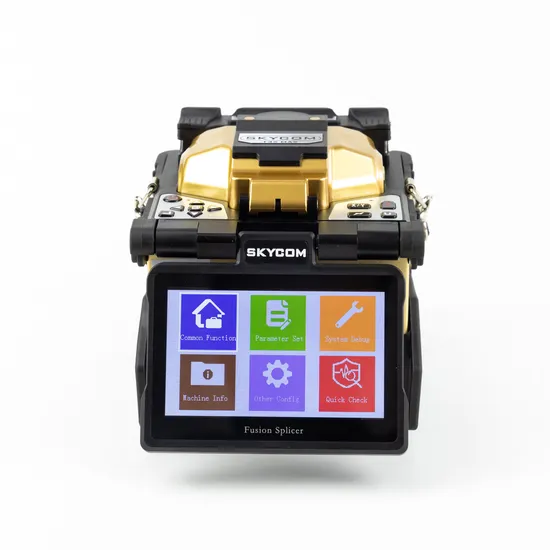

Ce Approved Fusion Splicer (Skycom T3X-Max)
Description
> Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself.
> We has been dedicated to R & D, manufacturing fusion splicer for more than 12 Years.
> Skycom T3X-Max is multipurpose fiber optic splicing machine which is applicable for single bare fiber and rubber-insulated cable.
> Our company have developed fusion splicer from 2010, and successfully obtained 5 patents for the fusion slicer research. Skycom T3X-Max is our new product. It has successfully passed CE. SGS, ISO 9001 tests.
Key Features
> 5 inches high resolution colorful LCD display, image can be turned according to position
> Average splice time: 8 seconds
> Average tube-heat time: 20 seconds
> Lithium battery: Rechargable and up to 220 times of continuous splice and heat after fully charged
> X or Y axis Separately views with 520 times magnification, or Simultaneously 230 times
> Cutting-edge technology for image processing
> New developed technology providing strong wind and dust resistance
> Splicing mode: Auto & Manual & Full-Auto
> USB Port
> Storing 10,000 groups of latest splice results
> New technology of fiber core alignment, enhanced accuracy
Specifications

Applicable Fibers	Single fiber: SMF (G.652/657), MMF (G.651), DSF (G.653), NZDSF (G.655)
Average Splice Loss	0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
Return Loss	≥60dB
Tension Test	2.0N(200gf)(Standard)
Typical splicing time	8 seconds
Typical heating time	20 seconds
Splicing Program	50 groups
Protection Sleeve Length	20mm, 40mm, 60mm
Operating Language	Chinese, English, French, Portuguese, Spanish
Operating Conditions	-10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude)
Power Supply	AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) Inner lithium battery: 12V, 6AH
Monitor	5 inches high resolution colorful LCD display
Fiber Image Magnification	X or Y axis Separately views 520 times magnification, or Simultaneously 230 times
Storage of Splice Result	10,000 groups of latest splice results
Splicing Model	Auto & Manual & Full Auto
Optical Fiber Fixture	3-in-1 cutting fixture
Dimensions	130(W)*138.5(D)*135(H)mm; Package size: 52*31*29cm
Weight	1.593kg+0.379kg (battery weight)=1.972kgs;

Standard Package

No.	Item	Quantity
1	Machine T3X-MAX	1
2	Fiber Cleaver	1
3	Fiber Stripper	1
4	AC Adaptor (Charger)	1
5	Battery	1
6	Spare Electrodes	1
7	Cooling Tray	1
8	Quick Reference Guide	1
9	Rubber-insulated wire stripper	1
10	Carrying Case with Carrying Strap	1

FAQ
1.Are you a manufacture or trade company?We are the manufacture with 10 year's history still 20202.What is your product's brand?Our product's brand is SKYCOM3.What is your main products?Our main product is Fusion Splicer, OTDR, some fiber tools4.How can we place order?After we made agreement on the product parameters, we will make proforma invoice for your confirmation, when we got your payment, we will arrange the production and delivery. If you have your own ship forwarder, we will use your ship forwarder to delivery goods, if you don't have the ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight cost.5. What is the quality for your product?All of our productsare with high quality, Our customers from Asia, South America, North America,EU, Africa. We also serve for China Unicom, China Telecom, China Mobile6. How do you arrange the shipping?They are two types of shipping methods available, by sea and by air(Express courier-Fedex/DHL/UPS/TNT/EMS,we can ship them according to your express account or ship them by our agent company,the delivery time is about 7 working days.7. Why choose SKYCOM to cooperate? We have first-class production line and strict quality management system. We have professional procedure system and big production capacity to guarantee fast delivery and on time shipment. We can provide the most competitive price to meet your budget. We also design and innovation the new products based on our rich experience. We have professional team to provide comprehensive one-stop service for you.

---
