Durable China-Made Stainless Steel Mixing Equipment for Powders

Product Description

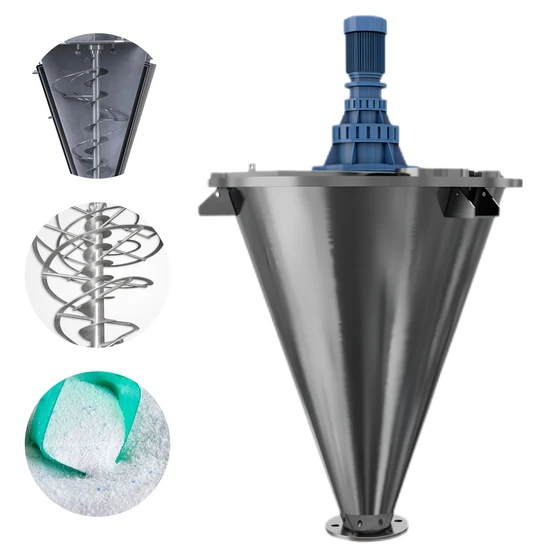

Introducing the Conical Screw Ribbon Mixers - the ultimate versatile solution for the complex tasks of mixing, stirring, and blending powders, granular materials, slurries, or viscous substances. These mixers are meticulously designed to be custom-fitted with a liquid spraying system and can operate under a variety of conditions, including vacuum, pressurized, heated, or cooled environments, all tailored precisely to meet the unique requirements of our users. This unrivaled flexibility allows seamless adaptation to a wide range of process conditions, ensuring your materials are mixed and stirred to absolute perfection.
The exceptional Conical Screw Ribbon Mixers offer unparalleled powerful and efficient mixing capabilities. During operation, materials near the container wall gently ascend, while those at the center smoothly descend, ensuring a thorough and gentle amalgamation of all flowable materials. This process guarantees an outstanding degree of uniform mixing for large quantities within a remarkably short timeframe. The meticulously engineered discharge mechanism ensures near-complete evacuation of materials from the hopper, minimizing residue and maximizing processing efficiency.
Product Features
1. Cantilever Shaft Structure,keeping the bearing ends free from material contact.
2. The minimal gap between the agitator blades and container wall effectively prevents material adhesion .
3. A standardized agitator drive box ensures smooth and stable operation of the equipment, significantly reducing maintenance costs.
4. Easy-Cleaning : Engineered for rapid and thorough cleaning between batches;
5. Durable Construction : Crafted from robust materials to guarantee long-term reliability;
6. Wide Application : Perfect for diverse industries including pharmaceuticals, food processing, chemicals, and cosmetics.
Technical Parameters

Equipment model	Total Volume (m³)	Loading Coefficient	Motor Power (kW)	Overall Dimensions (mm)	Equipment Weight (kg)
RX-DZH-0.06	0.06	0.4-0.6	1.5	φ630x1451	120
RX-DZH-0.1	0.1	0.4-0.6	2.2	φ715x1569	220
RX-DZH-0.3	0.3	0.4-0.6	2.2	φ920x1929	320
RX-DZH-0.5	0.5	0.4-0.6	4	φ1140x2327	410
RX-DZH-1	1	0.4-0.6	7.5	φ1480x2869	900
RX-DZH-1.5	1.5	0.4-0.6	11	φ1633x3140	1200
RX-DZH-2	2	0.4-0.6	11	φ1816x3489	1300
RX-DZH-3	3	0.4-0.6	15	φ2040x3760	2400
RX-DZH-4	4	0.4-0.6	18.5	φ2250x4425	2500
RX-DZH-6	6	0.4-0.6	22	φ2548x4940	2850
RX-DZH-8	8	0.4-0.6	30	φ2780x5360	4250
RX-DZH-10	10	0.4-0.6	37	φ3018x5815	5200
RX-DZH-12	12	0.4-0.6	45	φ3204x6100	5800
RX-DZH-15	15	0.4-0.6	55	φ3442x6540	6300

Product Display Product StructureApplication
The highly efficient Double Cone Mixer is ideally suited for applications in industries such aspowder metallurgy, electrical alloys, magnetic materials, battery powders, pearlescent pigments, chemical industry, medical, and food industry
.About Our CompanyShijiazhuang Rongxin Technology Co., Ltd.
was established in 2007 and is headquartered in Shijiazhuang, the capital of Hebei Province. Our expertise inthe design and provision of material handling automation systems has earned us a reputation as a pioneering leader, with numerous patents and prestigious accolades such as 'National High-Tech Enterprise' and 'Innovative Enterprise.'
Presently, our flagship products include dust-free enclosed feeding systems, sealed conveying systems, pneumatic conveying systems, and tube chain conveying systems, extensively utilized across the metal materials, food processing, chemical, pharmaceutical, and new energy industries.Moreover, we pride ourselves on possessing a state-of-the-art production facility with advanced manufacturing lines, ensuring the highest quality of our equipment. Company Certification
