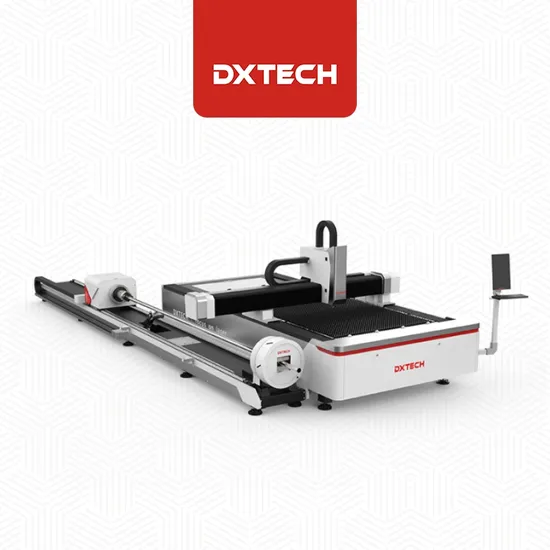

Good Quality China Plate Tube Laser Cutting Machine Stainless Steel Tube Cutting Machine 1000W 1500W 2000W

Product Description

Good Quality China Plate Tube Laser Cutting Machine Stainless Steel Tube Cutting Machine 1000W 1500W 2000W
Plate and tube fiber laser cutting machines are versatile and highly efficient machines used for cutting both metal plates and tubes. These machines utilize fiber laser technology, which provides a faster cutting speed, higher precision, and lower maintenance than other metal cutting machines. All these features make this laser cutting machine a better choice for metal processing businesses that need to cut both sheets and tubes.
Advantage
1. It adopts an integrated control cabinet, saving place and costs. Besides, all the parts of components come from Chinese high-quality brands, ensuring both reliability and a high cost-performance ratio.
2. The sheet and tube laser cutting machine can cut the most common metal sheets, like stainless steel, carbon steel, copper, aluminum, and a variety of steel pipes in round, square, and rectangular shapes.
3. Equipped with a professional CNC cutting system to ensure the high-speed and stable operation of the machine.
4. The maximum pipe cutting length is available to choose from 3m and 6m according to your demands. In addition, the worktable size is also customized to your requirements.

Machine Design Layout
Machine Details
Fully automatic double pneumatic chuck
1. One-click chuck opening and automatic centering will reduce the waiting time for loading and unloading.
2. Pneumatic open clamp: with large and constant damping force, the heavy pipe is not loose or slipped, which guarantees the cutting accuracy.
3. The special support frame can avoid the sagging deformation of the pipe, improve the cutting accuracy, and prolong the service life of the chuck.
Intelligent focusing laser head 1. Fully upgraded dust-proof design, double-layer protection, the risk of contamination of the lens is almost zero.
2. Cooling:the collimating mirror, focusing mirror and nozzle have a cooling structure.
3. Autofocus: without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
Thick-walled carbon steel plate welding bed 1. High strength, not easily deformed
The heavy-duty design ensures that the bed will not be deformed for many years, it is stronger and has a high tensile.
2. More stable
We choose rectangular tubes with thicker walls than common machines. It is well welded and makes the flatbed more stable when it laser cuts sheet metal, ss plate, iron sheet, etc.
Technical Parameters

Working Area 1515x3030mm, optional: 1310x2520mm Laser output power 1000W, 1500W, 2000W X/Y-axis positioning accuracy ±0.03mm X/Y-axis repositioning accuracy ±0.02mm Max linkage speed 100m/min Maximum acceleration 1.2G Pipe shapes Round, square, rectangular Pipe cutting length 3m, 6m Control system Weihong

Sheet Cutting Thickness and Powers

Material(mm)	1kW	1.5kW	2kW	3kW	4kW	6kW	10kW	12kW
Carbon steel	01-12	0.4-14	0.4-18	0.4-22	0.4-25	0.4-25	0.4-35	0.4-45
Stainless steel	0.4-5	0.4-6	0.4-8	0.4-12	0.4-12	0.4-20	0.4-40	0.4-50
Aluminum	0.4-3	0.4-4	0.4-6	0.4-8	0.4-10	0.4-16	0.4-30	0.1-50
Brass	0.4-3	0.4-5	0.4-6	0.4-8	0.4-10	0.4-14	0.4-18	0.4-20

Cutting Samples and ApplicationsDXTECH Company Strength
