Product Details
Product Description
Product Description

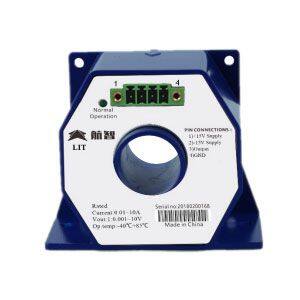

RIT001 has a high gain and measurement accuracy in the full bandwidth range, due to the application of the
multi-point zero-flux technology system and high-frequency ripple sensing channel on top of currently existing
DC sensor technology.
Primary Nominal Current: DC0.01,
Overload Capacity: 200% for 1 minute,
Power Supply: DC14.2V to 15.8V,
Output Voltage: ±1V,
Accuracy: 1%,
Linearity: 0.2%,
Zero Offset Voltage: ±10mV,
Dynamic Response Time: 2ms,
Frequency bandwidth(-3dB): up to 100KHz,
Insulation Voltage (Between primary and secondary): 5KV,
Operation Temperature Range: -40 ~ 85℃.
>>
