High Quality Metalworking Gap Bed Lathe (CA6150)

Product Description

High Quality Metalworking Gap Bed Lathe Machine for Sale (CA6150)

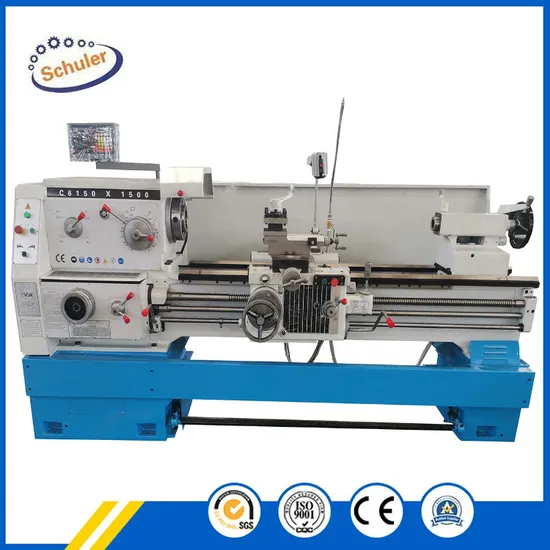

Product Picture:
Product Features:
1. Machine headstock and bed. Tail seat. Manually scrape the tray between the joints. The machine has been rigorously tested to ensure the accuracy and stability of the machine.
2. The machine tool uses high-strength cast iron and adds special materials such as copper and chrome. The bed rail width is 400mm and the bed rail quenching depth is 4mm, which effectively improves the wear resistance and stability of the machine tool.
3, head bed box lubrication using cycloidal pump for cyclic forced lubrication. It protects the headboard from the clean and heat-dissipating properties of the hot southern weather, effectively extending the life of bearings and gears.
4. The machine tool spindle adopts Wafangdian bearing, the spindle through hole is φ52mm, and the machine tool gear adopts precision grinding, which effectively improves the gear hardness and reduces the machine noise.
5. The machine tool adopts domestic brand screws, and the silk mother adopts high-quality bronze alloy to ensure wear resistance and precise maintenance.
6. The machine tool adopts four-station high-strength tool holder. The tool holder size is 25x25mm.
Standard accessories:
1.3-jaw chuck
2.Center¢re sleeve
3.Wrenches
4.Oil gun
5.Operation manual
Optional accessories: 1.Steady rest
2.Follower rest
3.4-jaw chuck
4.Face plate
5.Thread chasing dial
6.Longitudinal automatic trip
7.Live center
8.Quick change toolpost
9.Taper copy ruler
10.4-position longitudinal trip
Lathe Machine Technical Parameters:

Specifications	CA6150/CA6250
Max.Swing over bed	500mm
Max.Swing over carriage	300mm
Max.Swing in gap	720mm
Effective gap length	210mm
Max.Length of work piece	750mm-40000mm
Width of bed	400mm
Section of turning tool	25×25mm
Spindle speeds	10-1400rpm/16-1400rpm(24 steps)
Hole through spindle	52mm,(80mm),[105mm]
Spindle taper	Mohs6(MT6)(Ф90 1∶20)[Ф113 1∶20]
Number of feeds	64Species(kinds)(for each)
Range of metric threads(kinds)	(1-192mm)44Species(44 kinds)
Range of inch threads(kinds)	(2-24tpi)21Species(21 kinds)
Range of module threads(kinds)	0.25-48(Modulus39Species)(Module 39 kinds)
Range of pitch threads(kinds)	1-96DP(37Species)(37kinds)
Max.Tail stock spindle travel	150mm
Tail stock spindle diameter	75mm
Taper of tail stock spindle center hole	Mohs5(MT5)
Main motor	7.5KW(10HP)
Overall dimensions for750mm	2550×1140×1750mm
Overall dimensions for1000mm	2700×1140×1750mm
Overall dimensions for1500mm	3200×1140×1750mm
Overall dimensions for2000mm	3700×1140×1750mm
Overall dimensions for2200mm	4030×1140×1750mm
Overall dimensions for3000mm	4850×1140×1750mm
Overall dimensions for4000mm	5800×1140×1750mm
Weight for 750mm	2170kg
Weight for 1000mm	2260kg
Weight for 1500mm	2420kg
Weight for 2000mm	2720kg
Weight for 2200mm	2940kg
Weight for 3000mm	3450kg
Weight for 4000mm	3750kg

Brand Image:
As a professional manufacturer of lathe machines, we want our customers to know of our commitment to providing the latest products to all customers.
Lathe Macine Details Picture:
Lathe Machine In the Workshop:
Lathe Machine Package delivery:
The Package of Metal Lathe CA6150 CA6250 Gap Bed Lathe Machine for sale is export standard plywood case with iron plate below ,very strong and durable .
The Metal Lathe CA6150 CA6250 Gap Bed Lathe Machine for sale will be shipped to customers by land freight or sea freight .
Our Company:
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
If any questions pls feel free to contact me
Contact information :
Shandong Schuler CNC Machinery Co,Ltd.
Add: Tengzhou City ,Shandong Province ,China
