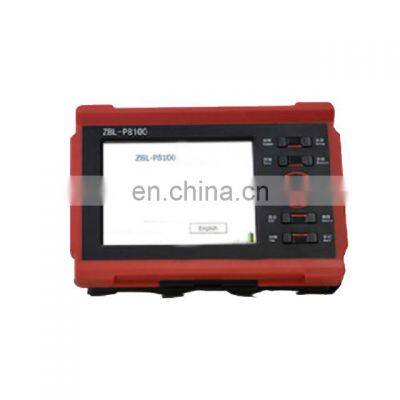

Product DescriptionZBL-P8100 sonic pile Integrity Dynamics testing Tester Low strain ZBL-P8100 sonic pile Integrity Dynamics testing Tester Low strain is used to assess the integrality of concrete pile and identify the extent and location of the pile detect by using the reflected wave method.It can be used for testing perfusion pile and hammer pile and also for testing the exposed top surface of constructions such pillars.ZBL-P8100 sonic pile Integrity Dynamics testing Tester Low strain provided with 2 channels of data acquisition and can acquire data from an accelerometer or an instrumented hammer or from two accelerometers.1.High fidelity system design, to ensure that the original waveform distortion2.True 24 bi A/D data acquisition, the rest waveform is more real, to avoid the noise and signal distortion caused by large floating point amplification3.1MHz high speed data acquisition, the minimum sampling time resolution of 1μs,can provide more useful information, more conducive to the discovery of shallow defects; 4.Double channel design, allows use the special detection method5. A new processing method of wavelet analysis, can be more accurate in complex situations of pile integrity judgement6. Double injection molding, beautiful appearance, small volume, light weight;7. Waterproof casing, anti shock design, adapt to the harsh environment8.Semi transparent, high brightness, TFT color LCD screen, more clearly in the sunZBL-P8100 sonic pile Integrity Dynamics testing Tester Low strainDetailed Images Model ZBL-P8100 sonic pile Integrity Dynamics testing Tester Low strain Control Mode A8 Embedded Platform Screen 5.7inch, High Brightness, TFT color LCD screen Data Storage ≥4GB Operation Mode Key + touch screen Sentinel Magnify(time) 1,2,5,10,20,50,100 adjustable A/D resoulution(bit) A/D resoulution(bit) Sampling time intervals(μS) 1~64000 adjustable Max length of sampling 4096 Trigger Signal trigger Noise voltage of the system(mV) ≤1 Dynarnic Range(dB) ≥184 Amplifier frequency range(Hz) 10~10K Time value error 4096 Time resolving power(us) ≤10% Gain Error(dB) ≤1% Work time(h) >8 Number of channels 2 Interference between the channels ≤1% Transducer/Probe Sensitivity(Acceleration mode) (mv/g) ≥100 Frequency range of Probe(Acceleration probe) (Hz) 0.5~9000 Port Double USB Wi-Fi Yes Power supply Internal:Built-in BatteryExternal: 220VAC/DC Operational Environment Temperature(℃): -10~+50Humidity (RH) :<90%Packing & DeliveryContact UsTrade terms1. 18 Month's Warranty.2. Delivery time:3-7 working days after payments received3. MOQ:1 set.4. Service express company:TNT/DHL/FedEX.5. We accept T/T, Western Union, PayPal & Secure Payment.DALIAN TAIJIA TECHNOLOGY CO.,LTDNO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, ChinaWhatsapp/Wechat:+861542425791 Skype: live:7ffcb0f91149cec8E-mail:martin(at)web:ZBL-P8100 sonic pile Integrity Dynamics testing Tester Low strain
>>
