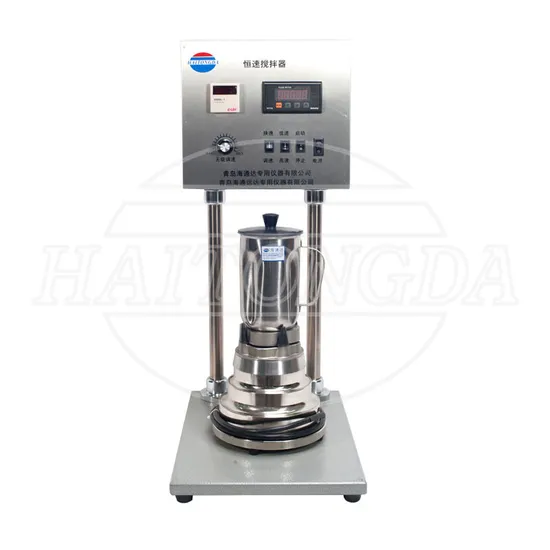

Model HTD3070 Constant Speed Mixer

Product Description

1,Introduction
The first steps of any test procedure have the ability to significantly impact the final results. This is true for oil well cement where detailed testing by the API has proven that the methods of mixing cement slurries will significantly affect their thickening time. Because of this, the API has defined accepted practices for mixing cement slurries.
Qingdao Haitongda Co. has developed a Model 3070 Constant Speed Mixer for blending cement slurry in compliance with the API's 10A/B. These mixers are engineered to operate at constant speeds thereby mixing the slurry at an automatically-maintained, stable, constant shear rate.
These high performance mixers are designed for heavy duty industrial applications and long life. They are equipped with heavy duty motors, stainless steel mixing vessels and hardened long-life mixing blades. An additional shaft seal and special electronic circuitry are added to the mixer motor assembly to ensure its reliability. A large, stable base ensures that the mixer stays in-place during operation.
Operational Simplicity
The Model 3070 is extremely simple to operate with three speed control selections. API specific speeds are preset and factory calibrated. These mixers also have a continuously variable speed control function which is adjustable across the entire rpm range.
Features
Push Button Simplicity Two Factory-Set Speeds and a Continuously Adjustable Speed Function Automatically Maintains Constant Shear Rate During Mixing Long-life Hardened Mixing Blades and Stainless Steel Vessel Built-In Timer with Automatic Shut-Off Rotational Speed Display Heavy Base Plate Ensures Stability During Operation
2,Type Specification

Model	Name
HTD3070	Constant Speed Mixer

3,Technical Specification

Technical Specification
Constant Rotational Speed	Factory-Set Speeds: 4000r/min;12000r/min(±10%);
Cup capacity	1000ml
The input voltage	AC220V 50Hz
Timing time	Adjustable from 0 to 99 hours
Rated power	230W
Net weight / Gross weight	19.2kg/30kg
Overall dimensions	300×420×710mm
Packing size	790×530×410mm

HOT SALE:
Certification:
Team:
Workshop:
Warehouse and transportation:
FAQ:
Q1 : Are you a manufacturer or a trading company ?
A1: We are manufacturer.
Q2: What is your main brand?
A2: Our brand is Haitongda, which is famous in China and other nation. Also we do OEM.
Q3: What are your business scope and product classification?
A3:Business scope: mud analysis instrument, electronic products, special instrument, mold design and manufacturing; Instrument maintenance and sales; Import and export of goods and technologies.
Product classification: including drilling fluid analysis instrument, oil well cement testing instrument and field overall solution, including 22 small categories and over 120 products.
Q4: What is your MOQ for the order?
A4: Testers per 1 set.
Q5: What is the warranty period of your instrument?
A5: One year.
Q6: Can I get better offer if our order can be bigger?
A6: Certainly. We will give you better prices based on the quantity for your order.
Q7:What certificate do you have for your instrument?
Q7: ISO, SGS and so on
Q8: What is your lead time for our order?
A8: For new order: 3 weeks;
For stock order: 3 working days after T/T. Based on FOB Qingdao.
Q9: What is your advantage of your factory?
A9: We are the original oil ministry designated drilling fluid analysis equipment manufacturer in China, which was founded in 1968.
Q10: What is the process to become an agency?
A10: Please send us mail enquiry, then we will reply you as soon as possible.
Contact us:
Qingdao Haitongda Special Instrument Co.,Ltd.


Add:No.320, Jiushui East Road,Licang district,Qingdao City,Shandong Province,China(266100)

---
