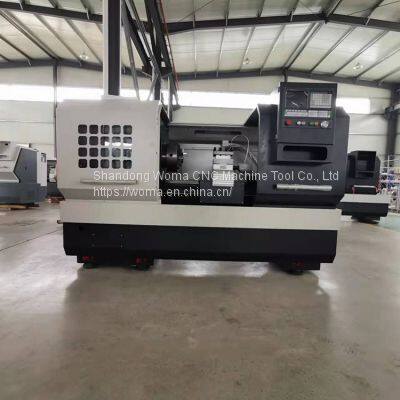

CK6140 CNC Lathe Machine
Flat Bed CNC Lathe Machine
CNC Lathe Machine
Heavy Duty CNC Lathe Machine
Product description：
1.Spindle adopts high precision rolling bearings, high precision rotary plate aspect to adopt high precision ball screw transmission, good dynamic performance, precision positioning.
2.The machine tool guide with wear-resistant cast iron and after the audio quenching, the hardness of the HRC45 above, can ensure the long-term stability of processing accuracy.
Product main technical Specifications:
ITEM
| Specifications
| UNITS
| CQK6140
|
Capacity
| Max.Swing over bed
| mm
| Φ400
|
Max.swing over cross slide
| mm
| Φ220
|
Maximum length of workpiece
| mm
| 750/1000/1500/2000
|
Spindle
| Spindle hole
| mm
| 52mm(82mm)
|
Spindle nose
|
| ISO-C6(C8)
|
Spindle tap
|
| MT6
|
Spindle speeds(Number)
| rpm
| Low：100-500High:500-180Optional:90-1800
|
Feed
| Z-axis stroke
| mm
| 750/1000/1500/2000
|
X-axis stroke
| mm
| 330
|
rapid moving speed（m/min）
| m/min
| 3/6
|
X/Z min input（mm）
| mm
| 0.001
|
Tailstock
| Dia. Of tailstock sleeve
| mm
| 75
|
Taper of tailstock sleeve
|
| MT5
|
Travel of tailstock sleeve
| Mm
| 140
|
Carriage
| Tool number
|
| 4(6)
|
Tool body size
| mm
| 20*20
|
Knife tool change time
| s
| 2
|
Position accuracy
| Repeat positioning accuracy
| mm
| 0.01
|
Power
| Main motor power
| K.W
| 5.5/7.5
|
Machine size(L*W*H)
| Overall dismensions for 750mm
| Mm
| 2200*1500*1600
|
Overall dismensions for 1000mm
| Mm
| 2450*1500*1600
|
Overall dismensions for 1500mm
| Mm
| 2950*1500*1600
|
Overall dismensions for 2000mm
| Mm
| 3450*1500*1600
|
Weight
| Weight for 750mm
| kg
| 1800
|
Weight for 1000mm
| Kg
| 1900
|
Weight for 1500mm
| Kg
| 2100
|
Weight for 2000mm
| kg
| 2300
|
Company Information
Shandong Woma CNC Machine Tool Co., Ltd. is one of the leading machine tool manufacturers and exporters in Shandong Province, China. We have more than 20 years of manufacturer experience. Our main products include CNC machining centers, CNC gantry milling machines, vertical milling machines, horizontal milling machines, universal milling machines, gantry milling machines, ram milling machines and vertical drilling machines, with a total of 30 categories.
We are a manufacturer, not a trading company. All our products have passed CE and ISO9001 certification. Our main customers include KNUTH of Germany and Bernardo of Austria. You can trust our quality and service.
I hope we can establish a long-term business relationship with you.
>>
