Two Blades, 6m Feeding Conveyor Drum Wood Log Tree Chipper for Biomass

Product Description

Hot Selling Professional Wood Drum Chipper with CE Certification
A tree chipper or wood chipper is a machine used for reducing wood (tree trunks or limbs) into small
parts, like wood chips or sawdust.

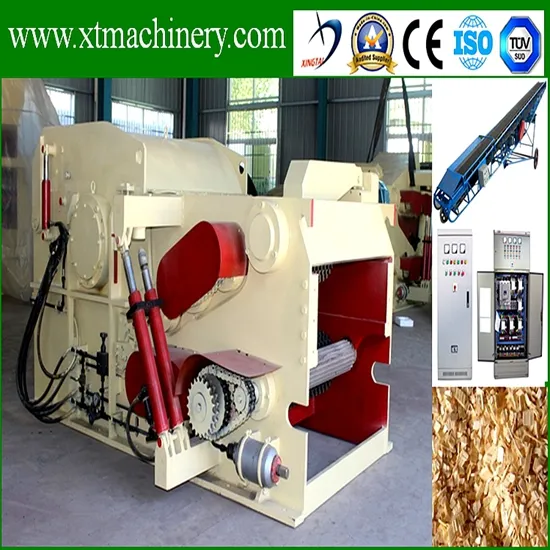

A Drum chipper is typically made of a hopper, up and down roller, rollers with blades, hydraulic system
and an output system, which is normally a belt conveyor. The hopper servers as a safety mechanism to
keep human body away from the chipping blades. Wood chippers are normally removable, and being
mounted or welded on a frame with wheels, which can be towed by a truck.

Final products high quality chips with even length and uniform thickness can be used for chipboard
industry, paper and pulp industry, sawmills and veneer industry and biomass plants.
Application
Scope: wood raw material: timber, processing residue (branches, batten, log core, building templates, roots waste veneer etc.) particle board, fiber board.
Non-wood raw material: sugarcane, reed, straw, etc.
Purpose: particle board factory, high density fiberboard, stubble factory, biomass power plant, wood factory,wood pellet manufacture.
Products information:

Model	BX215	BX216	BX216D	BX218	BX2113
Blade roller diameter (mm)	500	650	650	800	1300
Blade pieces	2	2	2	2	2
Feed inlet size (mm)	400*170	540-240	540*240	680*270	700*380
Max. Raw material size (mm)	150	200	200	250	350
Finish material size (mm)	25-35	25-35	25-35	30-40	40
Capacity (tons)	3-6	8-12	8-10	15-22	40-60
Main motor power (kw)	37-45	55	55	110	220
Up and down roller power (kw)	7	9.2	7	12.5	17
Weight (tons)	3.1	4.40	4.3	7.22	12.2
Blade roller speed	595	592	650	650	520
Total size (length*width*height)mm	1800*1800*1150	2300*2400*1250	2650*2550*1500	2400*2180*1700	3680*2450*2050

Before order the drum wood chipper, please kindly inform us belw information.

1. please tell us your expection on production capacity, (kgs/h, or CBM/h).
2. what are the diameter range of your raw materials, (mm) ?
3. what is your required size of final wood chiper, (length / width / thickness) ? or please tell us your usage of final wood chips, for paper plant, power plant, fuel pellet & briquette making line.
4. whether there are electric power supply in the working area, and the electric power (Voltage, HZ)
5. if your raw material also include branch, board, waste furnature, small wood block, and wood barks, please kindly tell us, we will give you the best suggestion.
XT MACHINERY, WORKS FOR YOU!

---
