VFFS-C

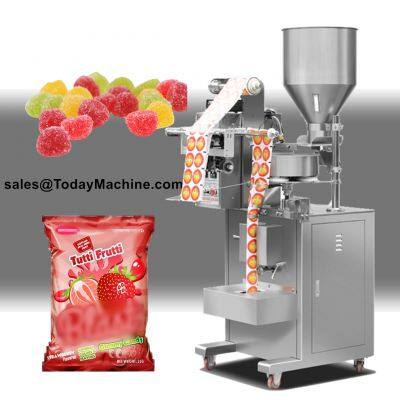

Granule Packing Machine
A granule packing machine with a volumetric cup filler is a type of packaging machine that is used to package granular or powdered products such as sugar, salt, coffee, and spices. The volumetric cup filler is a key component of this machine, which is designed to measure a specific volume of product and dispense it into the packaging material.
The volumetric cup filler consists of a cup or scoop that is sized to measure a specific volume of product. The cup is attached to a conveyor system that moves it along the filling line. As the cup moves along the line, it passes through a product dispenser that fills the cup with the correct amount of product. Once the cup is filled, it is released into the packaging material, which is then sealed to create a finished product package.
Accurate and consistent filling: The volumetric cup filler accurately measures and dispenses a precise volume of product, ensuring that each package contains the same amount of product.
Speed: These machines are available in different sizes and configurations, ranging from low-volume to high-speed production lines capable of packaging thousands of products per hour.
Easy to operate: Granule packing machines with volumetric cup fillers are user-friendly and require minimal training to operate.
Durable: These machines are typically made of high-quality materials, making them durable and long-lasting.
INDUSTRIES AND APPLICATIONS
1.Food and beverage industry: These machines are commonly used in the food and beverage industry to package granular or powdered products such as sugar, salt, coffee, and spices.
2.Pharmaceutical industry: Used in the pharmaceutical industry to package granular or powdered medications.
3.Cosmetics industry: Used in the cosmetics industry to package powders such as talcum powder, face powders, and other similar products.
4.Chemical industry: Used in the chemical industry to package granular or powdered chemicals such as fertilizers, pesticides, and other similar products.
TECHNICAL SPECIFICATION
Model
| VFFS-280C
| VFFS-280C-PLUS
| VFFS-450C
| VFFS-600C
|
Film width
| Max 300mm
| Max 320mm
| Max 420mm
| Max 580mm
|
Bag size
| L:30-175/190/210mm
W:25-145mm
| L:40-240/280/380mm
W:25-140mm
| L:50-275/295mm
W:60-195mm
| L:50-380mm
W:60-280mm
|
Output
| 40-90 pcs/min
| 30-60 pcs/min
| 15-40 pcs/min
| 10-30 pcs/min
|
Packing range
(ml≠g)
| 1-20g
10-100g
| 20-130g
50-250ml
| 100-500g
100/500-1000g
| 100-500g
100/500-1000g
|
Dimension
| 1200x1000x1750
mm
| 1200x1000x2000
mm
| 1300x1100x2100
mm
| 1500x1300x2200
mm
|
Total power
| 1.5KW
| 1.6KW
| 2.6KW
| 3KW
|
Weight
| 350kg
| 400kg
| 450kg
| 520kg
|
>>
