Basic Info.
Model NO.
(CH6236F/6240F/6250F)
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Controlling Mode
Artificial
Certification
GS, CE, RoHS, ISO 9001
Swing Over Bed Dia.
360/400/500mm
Max.Swing Over Cross Slide
190/230/330mm
Max.Swing Over Gap
520/560/660mm
Effective Length of Gap
200mm
Max.Distance Between Centers
750/1000/1500mm
Max.Travel of Top Slide
95mm
Max.Travel of Cross Slide
180/200/250mm
Max.Travel of Tailstock
65mm
Main Motor Power
5.5 or 4kw
Transport Package
Wooden Case
Specification
CE, ISO9001
Production Capacity
200PCS /Month
Product Description
Product Description

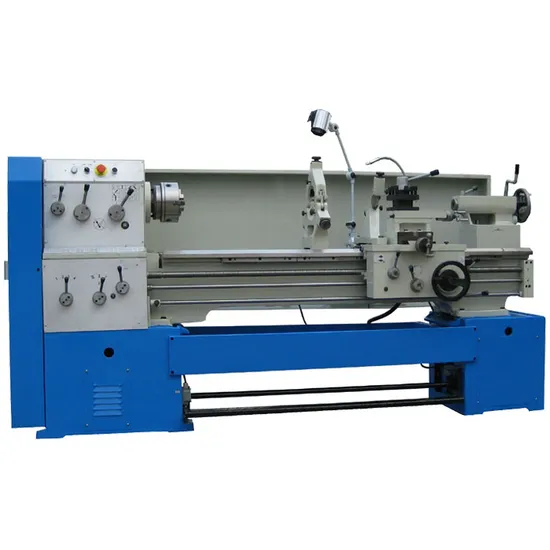

All Gears Metal Lathe Machine (CH6236F/6240F/6250F)
Features:
1. Built in safety clutch.
2. Cross-ribbed headstock for added strength and stability.
3. Anti-friction mounted shafts and dynamically balanced components.
4. Hardened and ground alloy steel gears, shafts and splines.
5. Precision chrome alloy spindle with a big 40mm (1-1/2) thru hole.
6. All cast iron construction.
7. Hardened & precision ground bedways.
8. Quick change gearbox will cut American and metric threads.
9. Foot brake.
10. Dual dialsinch/metric.
Product Parameters
| Model | CH6 1 236F | CH6 1 240F | CH6 1 250F |
| Max.swing over bed | 360mm | 400mm | 500mm |
| Max.swing over cross slide | 190mm | 230mm | 330mm |
| Max.swing over gap | 520mm | 560mm | 660mm |
| Effective length of gap | 200mm |
| Center Distance | 750,1000,1500mm |
| Bed Width | 360mm |
| Spindle hole | 52mm |
| Spindle nose | ISO-C6 or D6 |
| Spindle taper | MT6 |
| Spindle speed(Number) | (9steps)40-1400rpm |
| Longitudinal feeds range | 55kinds 0.021-0.592mm/rev |
| Cross feeds range | 55kinds 0.015-0.375mm/rev |
| Metric threads range | 17kinds 0.25-7mm |
| Inch threads range | 30kinds 5-144inch |
| Moudle threads range | 12kinds 0.25-3.5mπ |
| Diametral threads range | 30kinds 10-288D.P |
| of top slide | 95mm |
| of cross slide | 180mm | 230mm |
| Max.size of toolshank | 20*20mm 2 |
| Dia.of tailstock sleeve | 65mm |
| Taper of tailstock sleeve | MT4 |
| of tailstock | 140mm |
| Main drive motor | 4KW | 5.5KW |
| Coolant pump motor | 125W |
All Gears Metal Lathe Machine (CH6236F/6240F/6250F)
Standard accessories:
3-jaw chuck
4-jaw chuck
Steady rest
Follow rest
Foot plate
Optional accessories:
DRO
Quick change toolpost
Chuck protection
Leading screw guard
Toolpost protection
Payment terms:
1. TT 30% advance payment before production, pay the balance before delivery
2. LC at sight
3. Voltage requirements 220V/380V/400V...
>>
