Ajmtg 3 Year Warranty 1000mm Ck6140 Ck6150 High Precision Horizontal Bench Lathe CNC Machine China Horizontal CNC Lathe, Horizontal CNC Lathe Machine

Product Description

Hello dear friends, many CNC machines exported to Russia, warmly welcome esteemed you for inquiry or demands, we specially support customerization. Company Profile

Product Description

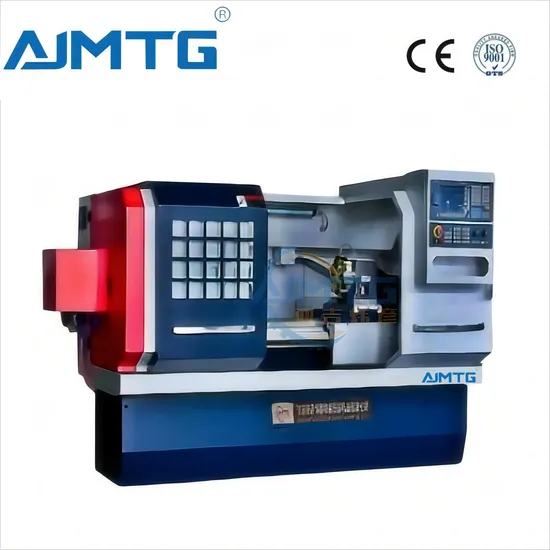

1000mm CK6150 High Precision Horizontal CNC Bench Lathe Machine
Machine Features:
1. Precision ground and hardened bedways.
2. The spindle is supported with precision roller bearings.
3. Head stock gears are made of high quality steel ground and hardened.
4. Easy operating speed change levers.
5. Removable gap is provided for larger diameter work.
6. Easy operating gear box has various feeds and thread cutting function.
7. Whole or segregate foot stand for optional.
Specifications:

Specification	CK6140/CK6150
Max.swing over bed	Ф400mm,Ф500mm
Max.swing over carriage	Ф250mm,Ф280mm
Max. cutting length	500/750/1000/1500mm
Rail width	400mm
Spindle nose	A2-8
Spindle bore	Ф82mm or Ф86mm, Optional Ф105mm
Taper of spindle bore	MT6
Chuck size	10"
Range of spindle speed	150-1600rpm or 3 steps:30-150,10-500,150-1600rpm
X-axis travel	330mm
Z-axis travel	500/750/1000/1500mm
X/Z rapid speed	5/8m/min
X/Z screw	3206/5010
Electronic turret	4 or 6 or 8 position
Max.section of tool	25x25mm
Stroke of tailstock sleeve	150mm
Diameter/Hole of tailstock sleeve	Ф75mm MT4
Main motor power	7.5kw or 11kw
Coolant pump power	180w
Overall dimensions L x W x H	2100/2420/2860/3320x1600x1830mm
Packing size L x W x H	2300/2620/3060/3520x1800x2030mm
Net weight	2700/2750/3100/3350kg
Gross weight	2600/3000/3450/3650kg

Packing and Delivery, plywood box with steel pallet:
FAQ:
Q1: How is the warranty? A1: Warranty time is 37 months after BL date. Q2:Can we visit your factory before order? A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking. Q3:Do you have a stock? A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs. Q4:What's the MOQ? A4:One set only. Q5:How about your quality? A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services. Q6:Do you have professional engineers? A6:Yes.we have professional engineers and designers. We can provide OEM&ODM services. Q7:Can you provide customized machines? A7:Yes, we can design and manufacture according to your specific requirements.

---
