Product Description
Product Description

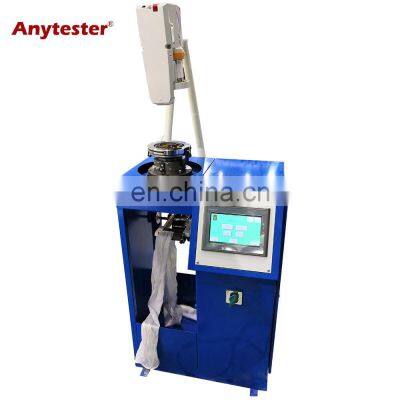

Product DescriptionAT250F Series Lab Knitting Machine is specially designed to knit fabric sample of POY, DTY or FDY for the assessment of yarn uniformity and dyeing affinity. It is applicable to various filaments of 30~1000dtex. It is an ideal equipment for dyeing test in knitting factories.FeaturesFilament Storage Device for AT250F-II and AT250F-III★ Equipped with filament storage device;★ Applicable to various filaments of 25~1000dtex, such as POY, DTY and FDY; ★ Standard needle cylinder has 240 needles; other needle cylinder with different needles are optional;Relationship between the filament fineness and number of needles are as below: ★ Adjustable running speed up to 300rpm (only for AT250F-III); ★ Automatic knitted fabric tension device; ★ LED display for AT250F-I and -II while touch screen for AT250F-III; ★ Stable and reliable;SpecificationModelAT250F-IAT250F-IIAT250F-IIINeedle cylinder diameter¢89mm (3.5inch)Number of feeder1Number of needles144~300NRunning speed180r/min300r/min10~300r/min, adjustableDisplay modeLED displayTouch screen displayApplicable filamentPOY (customized), DTY, FDYApplicable filament fineness25~1000dtexPower supplyAC380V 50Hz,three-phaseAC220V 50Hz, single-phaseDimensions(L×W×H)720×360×14500mm720×490×14500mm360×720×14500mmWeight85kg100kg100kgFilament fineness (dtex)Number of Needles25~4030035~6528050~100260NOTE: The standard needle cylinder for this machine has 240needle. If you want another needle cylinder, please inform us before order. Packing & DeliveryPackagingPackaging DetailsThe normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.Related ProductsAT248 Automatic Rapier Sample LoomAT246 Semi-automatic Sample loom AT247 Automatic Air-jet Sample LoomAT241 Small Sample Warping machinePaymentPayment ItemT/TEXW 30% T/T in advance, paid the balance before shipmentFOBCFR(C&F) 30% T/T in advance,paid the balance against copy of B/LCIF30% T/T in advance, paid the balance before shipmentFOBCFR(C&F) 30% T/T in advance,paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 50,000usdDelivery Time7~10 days after receiving payment for one containerOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productContacting usLily ChengWebsiteMobile Phone+86 180 5517 3820Whatsapp+86 180 5517 3820Skype 1933039910@qq.comWechat+86 180 5517 3820
>>
