HOWO Sinotruck Truck Pump Truck Construction Machine

Product Description

Product Parameters

MODEL	UNIT	24M	30M	35M	38M	45M
Overall length	mm	9880	10200	11500	11840	12700
Overall width	mm	2300	2300	2500	2500	2550
Overall height	mm	3900	3900	3900	4000	4300
Total weight	kgs	19500	20200	27200	31000	36000
Boom form		3RZ	5RZ	5RZ	5RZ	6RZ
End hose length	m	3	3	3	3	3
First arm length/ angle	mm/ o	7500/ 90	7550/ 90	8000/ 90	9300/ 90	9430/ 90
Second arm length/ angle	mm/ o	6200/ 180	6290/ 180	5995/ 180	7860/ 180	7284/ 180
Third arm length/ angle	mm/ o	6105/ 180	6295/ 180	5280/ 180	7780/180	6900/ 180
Fourth arm length/ angle	mm/ o	/	3450/ 180	6000/ 245	4870/ 245	8348/ 245
Fifth arm length/ angle	mm/ o	/	2856/ 90	5730/ 180	4000/ 245	4100/ 225
Sixth arm length/ angle	mm/ o	/	/	/	/	4274/ 90
Hydraulic system type		Open type system open	Open system openm	Open type system open	Open type system opensystem distributionopen open	Open type system
Distribution valve form		S tube valve	S tube valve	S tube valve	S tube valve	S tube valve
Theory output capacity	m3/h	50	80	80	80	80
Maximum aggregate size	mm	40	40	40	40	40
Theory pumping pressure	Mpa	10	10	10	10	10
Hopper capacity	L	600	600	600	600	600
Recommended concrete slump	MM	14-23	14-23	14-23	14-23	14-23
Hydraulic oil cooling		Air cooling	Air cooling	Air cooling	Air cooling	Air cooling
Mixer model		JS 500	JS 500	JS 500	JS 500	JS 500
Discharge capacity	L	500	500	500	500	750
Feed capacity	L	800	800	800	800	1200
Theory mixing capacity	m3/h	30	30	30	30	37.5

Product Description

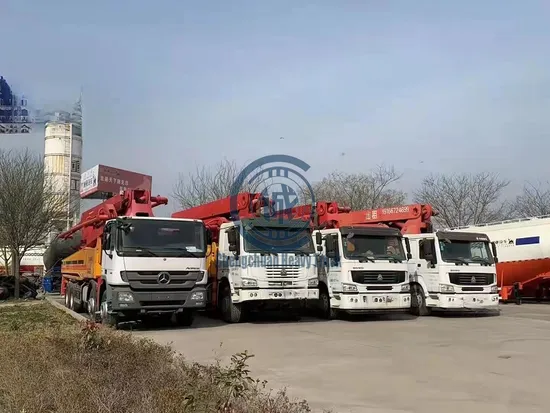

Pump Truck
Electronic control system Electronic System is highly automated and reliable. And the major electrical devices are from Schnei der. The electronic control system is equipped with two kinds of control devices: a board control device and a wireless remote control device, which are with the feature of easy operation, user-friendly ergonomics, and a nice appearance. There into, the wireless remote control devices are Apollo wireless remote control devices.
The electronic control system is equipped with several warning devices which can ensure high safety during machinery working. Boom System Boom system, based on accurate data, is formed by the finite element analysis, dynamic analysis and test. Boom system is produced with imported high strength low-titanium alloy steel. All material and its welds pass the 100% nondestructive inspection to ensure the safety and reliability of boom. The control system of boom has pressure compensation and load sensing function. And the R-shaped boom can be adjusted in five grades of speed. So the boom can run in proper speed and can be perfectly operated. Multi-way valve device The best loading-sensing multi-way values are used to improve the stability during the boom operating. Transfer case system Transfer case is the device which distributes the engine power. It can transfer the power from the engine on chassis so that the power from additional engine can be replaced, and the energy can be saved utilized efficiently. Hopper Designed with finite element analysis, the hopper is thick, strong, and good in dimension stability. As a result, the service life of the concrete pump and piston can be prolonged. The arc-shaped design can avoid blind corners. As a result, its performance of the concrete transferring can be improved, and the frequency of concrete blocking-up can be reduced.
Stirring shaft and S-shaped outlet and small end assembly are double-sealing structured, to prevent the components from corroded and abraded by cement paste. Detailed Photos

Company Profile

Chengchuan Heavy Truck Co., Ltd. Chengchuan Heavy Truck Co., Ltd. is located in Liangshan, Shandong , China, the world's largest used truck trading base. The company was established in August, 2010 and currently has nearly 300 employees, including more than 200 professional and technical personnel.

The company has a modern factory (building area of about 25,000 square meters) and a domestic first-class production line, with a capacity of stocking, repairing, maintaining and refurbishing for 3000 trucks of various types. The company supplies all types of tractor trucks, dump trucks, truck trailers, tank mixers and other special purpose vehicles and spare parts of brands such as Sinotruk, Shacman, Volvo, Mercedes Benz, Beiben etc. The company provides domestic and foreign customers with one-stop services such as inspection, transportation, customs clearance and after-sales services. The sales and service network covers more than 50 countries in Africa, Mid Asia and Southeast Asia, and the sales volume has reached 100 million USD in 2020.
Favorable Comment

Customers Visit The Factory

Packaging & Shipping

FAQ
1. Who are we?
We are based in Shandong, China, start from 2019,sell to Africa(30.00%),South Asia(20.00%),Southeast Asia(20.00%),Mid East(20.00%),Domestic Market(10.00%). There are total about 11-50 people in our office.2. How can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.What can you buy from us?used dump truck,Tractor,howo Dump truck,Used Trailer,Trailer4. Why should you buy from us not from other suppliers?The company is an enterprise specializing in the export service of used commercial vehicles, providing one-stop services such as procurement, preparation, inspection, customs declaration, transportation and destination customs clearance for foreign custome5. What services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

---
