Good Quality Sinotruk HOWO 4X2 Fire Fighting Truck for Sale

Product Description

chengli brand howo chassis 10-12tons standard fire truck dimensions
Product Specification

Product Name	howo 6x4 fire fighitng truck
Driving Type	6x4 ,left /right hand drive
WEIGHT
Kerb Weight	Approx.10550kg
Dimension
Wheelbase	4600+1350 mm
Overall Size	Approx.9850x2500x3400mm
ENGINE
Engine Model	WD615.47(371HP)
No of Cylinder	6
Displacement	9726ml
Max Output	273KW
Emission Standard	EURO 2
DRIVE TYPE
Transmission	HW19710 10 speeds,10 forwards and 3 reverse
Steering	ZF,With power steering
Brake	air brake
Front axle/rear axle	front axle:HF9 rear axles:ST16X2
CAB
Cabin	HOWO 76 new type
Configuration	with A/C
Seat quantity	double row
TIRE
Tire specification	12.00R20,10+1
CONFIGURATION
Tank Capacity	water tank:10000liters foam tank:2000liters water tank and foam tank capacity can adjustable
Tank Material	Q235 carbon steel,optional
Pipe Material	Q235 carbon steel,optional
fire pump	CB10/60
fire monitor	PL48

Fire pump specification

Item		Low Pressure		Middle Pressure		Combined working condition
		Flow (L/S)	Pressure (Mpa)	Flow (L/S)	Pressure (Mpa)	Low Pressure flow(L/S)	Low Pressure (Mpa)	Middle pressure flow (L/S)	Middle Pressure (Mpa)
Low pressure fire pump	CB10/20	20	1.0
	CB10/30	30	1.0
	CB10/40	40	1.0
	CB10/60	60	1.0
	CB10/80	80	1.0
	CB10/100	100	1.0
	CB10/150	150	1.0
middle-low pressure fire pump	CB20.10/15.30	30	1.0	15	2.0	20	1.0	10	2.0
	CB20.10/20.40	40	1.0	20	2.0	25	1.0	10	2.0
	CB20.10/30.60	60	1.0	30	2.0	40	1.0	15	2.0
	CB20.10/40.80	80	1.0	40	2.0	40	1.0	20	2.0

Fire monitor -water

Fire monitor -water
Model	Flow	Range	Working pressure	Tilt Angle Range	Horizontal Rotation
	(L/s)	(m)	(Mpa)	(°)	(°)
PS20W	20	≥50	≤0.7	-30~+70	0~360
PS30W	30	≥60	≤0.7	-30~+70	0~360
PS40W	40	≥65	≤0.7	-30~+70	0~360
PS50W	50	≥70	≤0.7	-30~+70	0~360
PS60W	60	≥75	≤0.8	-30~+70	0~360
PS70W	70	≥80	≤0.8	-30~+70	0~360
PS80W	80	≥85	≤0.8	-30~+70	0~360
PS100W	100	≥95	≤0.9	-30~+70	0~360
Fire monitor -water and foam
Model	Flow	Range	Working pressure	Tilt Angle Range	Horizontal Rotation
	(L/s)	(m)	(Mpa)	(°)	(°)
PL24	24	≥45	≤0.7	-30~+70	0~360
PL32	32	≥50	≤0.7	-30~+70	0~360
PL40	40	≥55	≤0.7	-30~+70	0~360
PL48	48	≥60	≤0.7	-30~+70	0~360
PL64	64	≥65	≤0.8	-30~+70	0~360
PL80	80	≥75	≤0.8	-30~+70	0~360
PL100	100	≥85	≤0.9	-30~+70	0~360
PL120	120	≥90	≤1.0	-30~+70	0~360
PL150	150	≥95	≤1.1	-30~+70	0~360
PL180	180	≥100	≤1.2	-30~+70	0~360
PL200	200	≥105	≤1.2	-30~+70	0~360

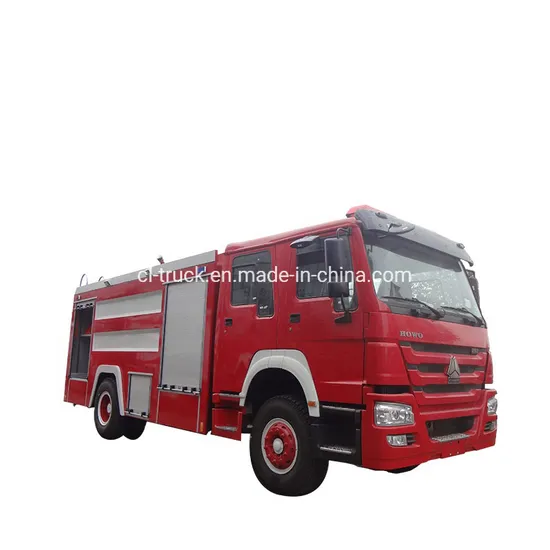

HOWO 6X4 FIRE TRUCK picture
Company information
1. ChengLi Special Automobile Co.,Ltd, which was appointed by the Development and Reform Committee of China, is a famous manufacturer producing all kinds of special trucks for municipal & environmental construction, virescence, petrol & medicals, container, and semi-trailer. Brands registered include CLW .Our company has independent export right and has a mount of clients in overseas. Our leading varieties include more than 100 types of trucks and related products such as water truck, garbage truck,sewage suction truck, fuel tank, high-altitude operation truck, truck mounted crane, dump truck, LED advertising truck,LPG truck/trailer,LPG filling tank, van truck, semi-trailer, fire engine, refrigerator truck, tractor, bulk cement truck, chemical liquid truck, concrete mixer truck, and others.
2.Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more, our company has roundly passed ISO9001:2000 and CCC (China Compulsory Certification) certifications. Series trucks of Cheng Li have procured remarkable achievements interiorly, especially from the investment in South Suburb Cheng Li Automobile Industry Park.
3.Quality control:our company truck pass ISO,3C,ASME certification.
our factory have the quality Quality Inspection Department.before sending truck for facotry ,our quality inspection department will check the truck carefully.
4. Export market: Africa,Asia,South America,Pacific and so on
5.Our company cooperate with famous chasis manufacturers,such as DONGFENG,SHINOTRUK,FOTON,ISUZU JAC,JMC ,SHACMAN,FAW and etc.
6.Factory Show:

Service 1.We can product truck accroding the customer's requirments(color,size,logo and so on)
2.We can send our technician to arrive the customer's country to provide the service .
3.We can train customer's workers for free.
4.Our truck warranty:12 months.we can provide the parts for free at the frist year.
Success Case Show
FAQ 1.Payment term.
-T/T,30% deposit ,and pay the blance before shippment from our factory
-L/C,L/C price is expensive than T/T price.
2.What about quality ?
Our truck are brand new truck,Our survival is based on quality and credit standing is the guarantee of our success. We will do as we can to treat customers honestly, manage flexibly, guarantee high quality but low price, and keep high efficiency.
our company truck pass ISO,3C,ASME certification.
3.Visit our factory
Our factory are in suizhou city,hubei province china.
You can take train or plane to arrive wuhan citry(wuhan city is the capital of hubei province) .and our driver will pick up you at wuhan railway station or wuhan tianhe airport. And if need the invitation letter ,pls send your private information and company information to me. Contact US

---
