Dahua OEM CCTV Network Video Recorder with 4CH/8CH 1HDD Poe 4K NVR Video Recorder

Product Description

Product Description

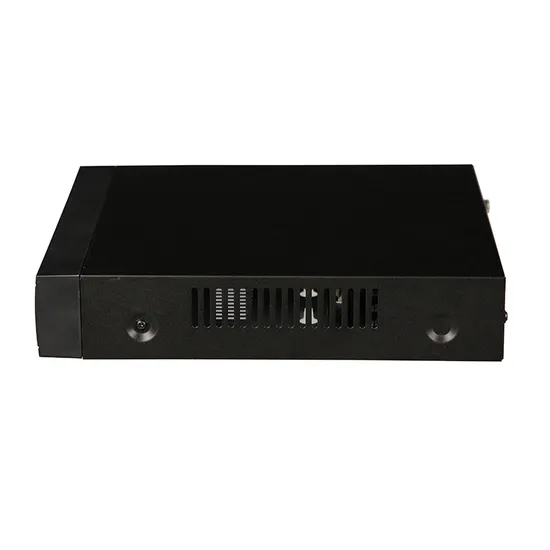

NVR5104H-4K
Max. 80 Mbps incoming; Max 4 Channel 8MP IPC input;Support ONVIF;
4-channel 1080P decoding capability;Supports adaptive decoding
Support 4K HDMI output; Up to 4channels for playback;4 PoE Ports;
Support P2P, APP Alarm Push;
AI by camera: Face Detection , Perimeter Protection, Object Detection,and SMD
Support AI search;

System	OS	Embedded Linux
	OS Operation Interface	Web/operating in local GUI
Perimeter Protection by Camera	Performance	4 channels
Face Detection by Camera	Performance	4 channels
Object Detection by Camera	Performance	4 channels
SMD by Camera	Performance	4 channels
Video&Audio Input	Incoming bandwidth	80Mbps
	Output bandwidth	80Mbps
	IPC Input	4CH
Video&Audio Output	VGA	1920×1080,1280×1024,1280×720
	HDMI	3840×2160,1920×1080,1280×1024,1280×720
	Audio Output	1CH,RCA(Line out,2Vp-p,300ohms)
Audio Encoding	Audio Compression	G.711A
	Audio Bit Rate	8Kbps(16bit)
Video&Audio Decoding	IP channel Resolution	Up to 3840×2160
	Video decoding	H.265(Main Profile@L5.0 High-tie)/H.264 Up to High Profile@Level5.0)
	Audio decoding	G.711A,G711U,G726
	Synchronous Playback	4CH
	Decoding Ability	4CH 1080P@30FPS/1CH 4K@30FPS
Preview	Synchronous Preview	4
	Multi-screen Display	1, 4 views
Playback	Record Mode	Manual; Schedule (general; MD; alarm; intelligent)
	AI Search	Search by target classification (human, vehicle,non-motor vehicle)
	Backup	USB device
	Playback Function	1. Play; pause; stop; fast forward; fast backward; rewind; play by frame 2. Full screen; backup (cut/file) ; partially enlarge; audio on/off
Network	Network Protocol	HTTP; TCP/IP; IPv4; UPnP; SNMP; RTSP;UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; P2P; Auto register
	Mobile Phone Access	Android; iOS
	Interoperability	ONVIF; SDK
	Browser	IE8 or later
HDD	SATA	1
	ESATA	0
	Max Capacity	14 TB
External Interface	PoE Ports	4
	Network Interface	1 RJ45 100M
	VGA	1
	HDMI	1
	CVBS	0
	USB	2*USB2.0 on Back Panel
	RCA Input	1
	RCA Output	1
	Alarm Input	0
	Alarm Output	0
	RS-232	0
	RS-485	0
Other Function	IPC Access	Support One-Click add IPC function
	Two-way Talk	Yes
	Alarm Linkage	Record; Snapshot; Buzzer; Log; Preset; Email
	Picture Capture	Support JPEG Capture
General Parameter	Front Panel	C
	Packing	410x293x60mm
	Dimensions	Mini 1U 215x235x45mm
	Weight	1.7Kg(No HDD)
	Installation	Desktop Installation
	Power Supply	DC 48V/1.35A
	Working Temperature	-10ºC--+55ºC
	Working Humidity	10%--90%
	Consumption	7W(without HDD,without POE)
Certifications	Certifications	CE/FCC

NVR5108C-8P = Dahua NVR4108HS-8P-4KS2/L
Max. 80 Mbps incoming; Max 8 Channel 8MP IPC input;Support ONVIF;
4-channel 1080P decoding capability;Supports adaptive decoding
Support 4K HDMI output;Up to 8 channels for playback; 8 PoE Ports;
Support P2P, APP Alarm Push;
AI by camera: Face Detection , Perimeter Protection, Object Detection,and SMD
Support AI search;

System	OS	Embedded Linux
	OS Operation Interface	Web/operating in local GUI
Perimeter Protection by Camera	Performance	8 channels
Face Detection by Camera	Performance	8 channels
Object Detection by Camera	Performance	8 channels
SMD by Camera	Performance	8 channels
Video&Audio Input	Incoming bandwidth	80Mbps
	Output bandwidth	80Mbps
	IPC Input	8CH
Video&Audio Output	VGA	1920×1080,1280×1024,1280×720
	HDMI	3840×2160,1920×1080,1280×1024,1280×720
	Audio Output	1CH,RCA(Line out,2Vp-p,300ohms)
Audio Encoding	Audio Compression	G.711A
	Audio Bit Rate	8Kbps(16bit)
Video&Audio Decoding	IP channel Resolution	Up to 3840×2160
	Video decoding	H.265(Main Profile@L5.0 High-tie)/H.264 Up to High Profile@Level5.0)
	Audio decoding	G.711A,G711U,G726
	Synchronous Playback	8CH
	Decoding Ability	4CH 1080P@30FPS/1CH 4K@30FPS
Preview	Synchronous Preview	8
	Multi-screen Display	1, 4, 8, 9 views
Playback	Record Mode	Manual; Schedule (general; MD; alarm; intelligent)
	AI Search	Search by target classification (human, vehicle,non-motor vehicle)
	Backup	USB device
	Playback Function	1. Play; pause; stop; fast forward; fast backward; rewind; play by frame 2. Full screen; backup (cut/file) ; partially enlarge; audio on/off
Network	Network Protocol	HTTP; TCP/IP; IPv4; UPnP; SNMP; RTSP;UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; P2P; Auto register
	Mobile Phone Access	Android; iOS
	Interoperability	ONVIF; SDK
	Browser	IE8 or later
HDD	SATA	1
	ESATA	0
	Max Capacity	14 TB
External Interface	PoE Ports	8
	Network Interface	1 RJ45 100M
	VGA	1
	HDMI	1
	CVBS	0
	USB	2*USB2.0 on Back Panel
	RCA Input	1
	RCA Output	1
	Alarm Input	0
	Alarm Output	0
	RS-232	0
	RS-485	0
Other Function	IPC Access	Support One-Click add IPC function
	Two-way Talk	Yes
	Alarm Linkage	Record; Snapshot; Buzzer; Log; Preset; Email
	Picture Capture	Support JPEG Capture
General Parameter	Front Panel	C
	Packing	410x293x60mm
	Dimensions	Mini 1U 215x235x45mm
	Weight	1.7Kg(No HDD)
	Installation	Desktop Installation
	Power Supply	DC 48V/1.875A
	Working Temperature	-10ºC--+55ºC
	Working Humidity	10%--90%
	Consumption	7W(without HDD,without POE)
Certifications	Certifications	CE/FCC

Packaging & Shipping
Company Profile
YINFU TECHNOLOGY LIMITED was founded in 2015, we have the professional sales and technical support team in Hangzhou. Since established, we are always focusing on the distribution of security products, and cooperate with the top3 manufacturer in security field. Our business covers many countries including Europe,
Africa,America, Asia, Australia, and so on.
The products we sell include DVRs, NVRs, IP cameras, HDCVI cameras, and so on. All the products we providing are original international versions and OEM orders are also welcome.
We will make great efforts to offer excellent pre-sales, sales, and after-sales service.
We adhere to the principle of "Customer Upmost, Service First" We are sincerely looking forward to your cooperation!

FAQ Q: Are you a factory or trade company?
A: We are a factory for OEM camera and NVR, and doing trade business with security TOP brands.
Q: When will you ship my order?
A: For those in stock, we will ship orders within 1-5working days once we get a confirmation for payment
For those out of stock, delivery time is around one month
Q: Can l install the IP camera by myself?
A: Of course the camera is flexible and installed. And there is a user manual in the box.
Q: What's your payment method?
A: We accept T/TWesternUnion, MoneyGram, and Paypal
Q: Do you support drop shipping?
A: Yes, your drop shipping is available
Q: How about a warranty?
A: Three years warranty and you can contact us for any technical problems. Our technicians will support you in 24 hours.

---
