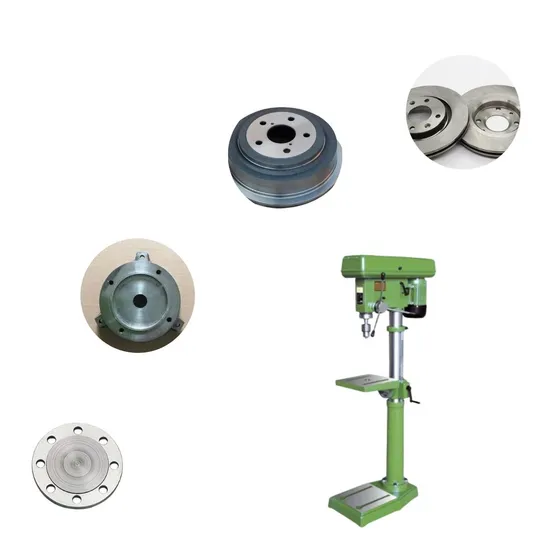

Light Type Drilling Press Zqd4125/Zqd4132

Product Description

Characters:
Both spindle head ,column and base using high quality cast iron, strong and everlasting.
High precision with excel lent feature,widel yuse at instrumentand camera area.

Model No.	ZQ4125/ZQ4132
Item No.
Moving
Max. Drilling capacity	25/31.5 mm
Diameter of column	85 mm
Spindle
Spindle travel	110 mm
Distance spindle axis to column generating line	200 mm
Max.Distance spindle nose to table	480 mm
Max.Distance spindle nose to base	670 mm
Spindle taper	MT3
Spindle speeds range	200~2280 150~2270 r/min
Spindle speeds series	9/12
Dimension of work table surface	240X240 or Ø360 mm
Dimension of base	566X356 mm
Other
Overall height	1110 mm
Powerof motor	750/1100 w
G.W/N.W	105/98 kg
Packing dimension	108x77x34 cm
Standard accessories	Special accessories
Drill chuck	Safety guard
Taper sleeve ( only MT3 spindle )	Vice
Arbor ( only taper hole spindle )
Drift ( only taper hole spindle )
Wrench

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
