CNC Ultra-Precision Surface Grinding Machine Automatic End Vertical Gantry Grinding Milling Machining Center

Product Description

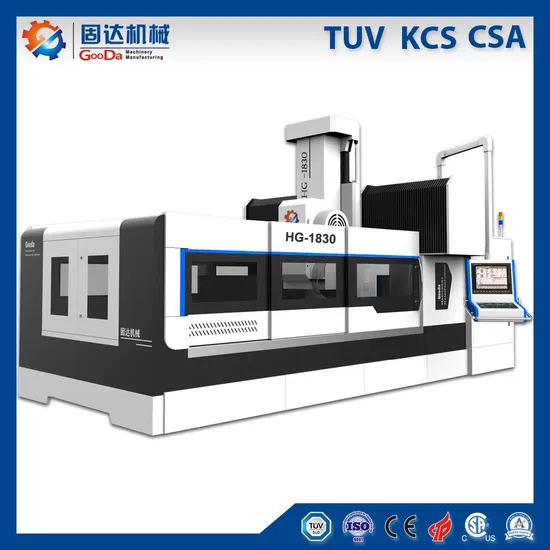

GOODA PLANAR GRINDING MACHINE
MODLE: HG-1830NC

Features and applications:
The horizontal grinding head adopts high-precision flange type spindle design. With three pairs of super-precision angular contact bearings (made in Japan/Germany), using high-temperature resistant high-grade lubricating grease, completely sealed, no need for additional maintenance. Therefore, it can maintain high quality characteristics such as low noise, high precision and low temperature during grinding.

The grinding machine is equipped with a safety type grinding wheel with buffer protection device. The wheel adopts reasonable structural transformation, so that the safety of the operator is guaranteed.


The worktable adopts the fully supported double V self-positioning type hard rail design, the base rail is processed by high frequency, HRC55°±3°, the worktable rail is affixed with PTFE rail tape, to ensure the good smoothness and guidance of the table motion rail.

Specification
You can choose the FANUC system or MITSUBISHI Controller as you like.
*Gooda will help you reduce setting time and reduce running costs, to increase efficiency.

Item		Unit	HG-1830NC
Capacity	Max. grinding size(W*L)	mm	1600*3000
	Worktable size(W*L)	mm	1500*3000
	Max. thickness	mm	600
	Net width of inside	mm	1800
	Max. Loading weight	KG	10000
	Electric disk size	mm	1500*3000
Grinding head	Spindle motor	KW	18.5
	Spindle size	mm	Ф170
	rpm	rpm	1400
	Grinding wheel size	mm	Ф500x80x203
Motor Power	Worktable drive motor	KW	22
	Left and right moving motor	KW	2.0/10N.M
	Up and down moving motor	KW	2.0/15N.M
	Water pump motor	KW	0.5
Speed	Front and back moving speed	M/min	5-28
	Left and right moving speed	mm/min	5-3000
	Up and down moving speed	mm/min	5-3000
Size	Space	mm	9100*4200
	Machine height	mm	3600
	Machine Weight	KG	28000
Other	Power supply	V/HZ	380V-50HZ

Main products: CNC duplex milling machine, CNC high-speed sawing machine, CNC Vertical milling machine, CNC Gantry milling machine, CNC Machining Center, CNC three Axis Chamfering machine, CNC Planar Grinding machine, Plate flipping machine. The application scope of the products includes mold steel, mold base, aluminum plate, die processing, and other metal cutting. After years of research and development and innovation, the products are at the leading level in terms of processing accuracy, machine stability, Ergonomic design, and other technical performance. With the continuous improvement of market demand, GooDa has launched six side processing solutions, indirectly promoting the development of China's mold industry.
After years of unremitting efforts, the company has obtained dozens of patent technology and software copyright and has successively passed the ISO 9001 quality management system certification of the EU TUV certification body, EU CE product safety certification, intellectual property management system certification, national high-tech enterprise evaluation, and other honors. In order to maintain the leading edge of product technology, the company has actively carried out school-enterprise cooperation to continuously promote the development of the enterprise while recruiting excellent talents in the industry.
Benefiting from the company's innovation and R&D advantages, the company has developed rapidly in just a few years. The existing R&D and production sites have restricted the company's subsequent development, and the space for capacity improvement is limited. For the company's sustainable development in the future, in 2018, GooDa invested heavily in the construction of GooDa machinery's normal headquarters Industrial Park to support the development of the company's high-end CNC machine tool equipment project, Greatly enhance the company's CNC intelligent equipment capacity. Company profiles
We are the manufacturer that produces the high-end CNC machine in China and focuses on developing and supplying the high efficiency, high accuracy, and high-quality CNC Duplex Milling Machine, Exchange-Pallet Vertical CNC Milling Machine, CNC Gantry Grinding Machine,5-Axis High-Speed Gantry Machining Center, CNC High-Speed Saw Machine and CNC Chamfering Machine.
Our aspiration is to be flexible in implementing customer requirements, guarantee the high reliability of the milling machine, ensure that spare parts are available at short notice, and facilitate the prompt availability of service engineers.
Certifications TUV ISO9001 Certificate CE Certificate Patent Certification software copyright of milling machine Member of High-Tech Nation High-tech Enterprises Member of SZMA Cooperative Partner
Gooda plays an important role in the China machine industry and exports our machines all over the world (The United States/ Korea / Canada/Thailand/ India / Southeast Asia etc.). and now, we have agents in South Korea/India/Thailand/ Vietnam, please feel free to contact us to get more detail.
After-sale service:
24 hours door to door service; 72 hours service by GooDa's international engineer
Packing and shipping
For all exported Milling Machine, we use the PE bag cover inside
+Veneer box/steel beam frame to provide great protection for it.
FAQ
Q: Are you a manufacturer or a Trading Company?
A: We are an innovative enterprise with rich import & export experience and 10 professional production lines. Warmly welcome you to visit our factory.
Q: How is the delivery?
A: For standard configuration, it's usually 45 days after the down payment.
Q: Have you sold any machines in my country?
A: With the company's development, Gooda plays an important role in the China machine industry and export our machines all over the world (The United States/ Korea / Canada/Thailand/ India / Southeast Asia, etc.). and now, we have agents in South Korea/India/Thailand/ Vietnam, please feel free to contact us to get more detail.
Q: Can you support OEM Service?
A: Yes, according to customers' requirements, we would like to make the building plan to meet customers' needs.
Q.How can I choose the most suitable machines?
A: Please let us know your machining demand or machine size, we can choose the best model for you, or you can choose the exact model by yourself.
.Q: How is the after-sales service?
A: Our products have one year warranty, and a strong team of engineers to support after-sales service. If there is an issue with the machine, please contact us immediately and we will give you a solution way soon. Service first!

---
