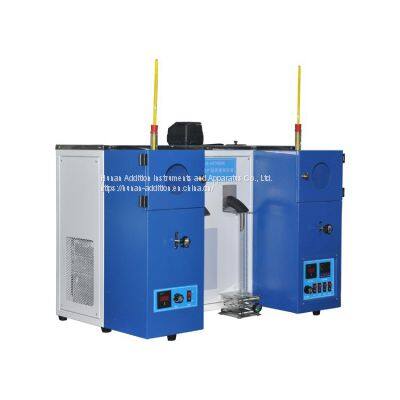

Distillation of Petroleum Products Tester
Product Model: JF6536D
Product Introduction
This instrument is suitable for testing the distillation of natural gasoline, motor gasoline, aviation fuel, jet fuel, naphtha, petroleum spirit, kerosene, diesel and other similar petroleum products. In operation, a certain amount of sample is distilled under specified conditions suitable for its properties. The thermometer readings and condensate volume are systematically observed, and based on these data, calculations are made and the results reported.
Technical Parameter
1. Applicable standard: ASTM D86 ISO3405 NFM07002
2. Temperature control method: high-quality PID digital temperature controller
3. Temperature control accuracy: ±1℃
4. Heating method: electric heating rod heating
5. Power of the whole machine: 1500W
6. Working unit: front-mounted double-pipe
7. Circulation mode: self-priming pump circulation
8. Working power supply: AC220V/50Hz
9. Temperature range: 0~80℃
10. Refrigeration method: compressor refrigeration
11. Instrument size: 830*560*630mm
12. Net weight: 60KG
Main Feature
1. The instrument is an integral type, which can do gasoline and diesel experiments at the same time.
2. Built-in self-priming pump imported from Taiwan for circulation to ensure that the switching experiment temperature can be completed within 5 minutes;
3. The thermostats of the hot bath and the cold bath are controlled separately;
4. Stainless steel heater;
5. Fully enclosed compressor refrigeration;
6. Built-in fan cooling distillation furnace;
7. PID thermostat, digital display temperature, accuracy
>>
