| US$197,286.00-226,000.00 | 1 Piece (MOQ) |

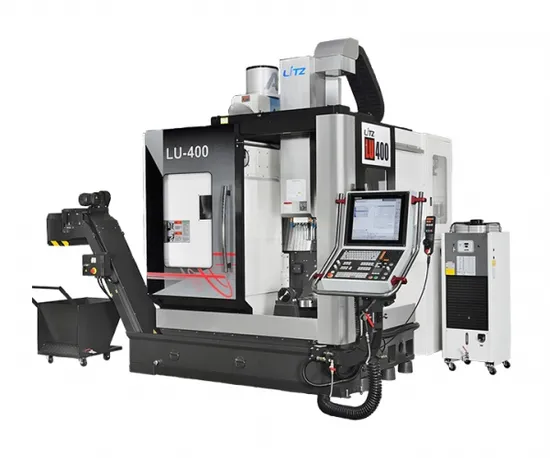

| Model | LU-400A | |
| Travel | ||
| X/Y/Z Axes Travel | mm | 400/350/350 |
| B Axis Tilting Range | -50°~+110° | |
| C Axis Rotating Range | 360° | |
| Spindle Nose to Table Surface | mm | 150~500 |
| Spindle | ||
| Spindle Transmission Type | Direct Drive | |
| Tool Shank | ISO 40 | |
| Spindle Speed | rpm | 12000 |
| ATC | ||
| Magazine Capacity | T | 30 |
| Taper | HSK63A | |
| Max.Tool Length | mm | 250 |
| Max.Tool Diameter(No Adjacent Tool) | mm | ∅75(∅127) |
| Motor | ||
| Spindle Motor(Cont/30mins) | kw | 5.5/7.5(FANUC) |
| X/Y/Z Axes Motor Power | kw | 4.5/2.7/4.5(FANUC) |
| B/C Axes Motor | kw | 7/2.7(FANUC) |
| B/C Axes | ||
| Work table Size | mm | ∅450 |
| Center Hole Size | mm | ∅55H7X12 in depth |
| T slot type | mm | T14 Radial Type 8 Slots |
| Max.Work table Loading | kg | 200 |
| Rapid Travel | ||
| X/Y/Z | M/min | 48/48/48 |
| B/C | rpm | |
| Cutting Feedrate | mm/min | 1-20000 |
| Control | ||
| Type | FANUC0iMF | |
| Miscellaneous | ||
| Machine Weight | kg | 6000 |
| Coolant Tank | L | 220 |
| Dimension(L*W*H) | mm | 4126x2723x3013 |
| Power Requirement | KVA | 20 |
| Air Sourcen | kg/cm²(l/min) | 6(1600) |
