High Cost Performance Stud and Track Roll Forming Machine for Luxury Prefab House

Product Description

Special Floor Joist Machine SFS-CU200-350
Overview
The SFS-CU200-350mm Floor joist machine is a highly versatile member of the FrameTec manufacturing system. Designed to offer increased production speed, greater flexibility and increased reliability, This machine is suitable for wall framing, floor trusses, and roof trusses.Profiles with widths of 200, 250, 300, and 350 mm and thicknesses up to 2.20 mm can be produced.
Machine Equipment
Specifications

Profile Shape	CU type and Sigma Shape
Profile Size	200/250/300//350mm
Material Thickness	1-2.65 mm, G300-G450 Zinc-Alum Steel Coil
Operation System	21 inches Touchable Screen
Production Control System	Self-devoloped FrameTec LGS machine Controlling Software
Design Software	Vertex BD from Finland
Comprehensive Machine Speed	Joists: 500 m/hr Walls: 800 m/hr
Max. Machine Speed	2,150m/hr
Power Supplier	380V, 50Hz, 3Phrases, can be customized
Hydraulic Coolant System	Self Cooling, Optional refrigeration device for high strength production, air cooling and AC cooling
Punching, Cutting Mould	Fixing tabs, Web hole, Service Hole, Dimple, Web Notch
Hole Punching Accuracy	± 0.5 mm
Decoiler	5000 kgs,auto decoiling

Machine Main Features

Classical LGS machine models for 6+ years, very stable and with high speed production speed	The SFS-CU200-350mm produces wall frames, trusses and joists for residential and light commercial building quickly economically
Advanced hydraulic and punching functions for high productivity and versatile components production such as trusses, walls and joists	An auto-gauging system that automatically adjusts gauge range to increase overall productivity for steel thickness from 1 -2.2mm
High line speed results in the accelerated cold formed steel framing and truss manufacturing output	Smart internet connectivity provides cloud-based data reporting to enable real-time production management, and technical diagnostics to improve efficiency
High line speed results in the accelerated cold formed steel framing and truss manufacturing output	Self developing control system base on the market feedback that can meet your requirement well & with good after sales support

Working Flow:
De-coiler→ Leveling Device→ Punching Device→ Roll Forming System→Cutting Device →Out-let table

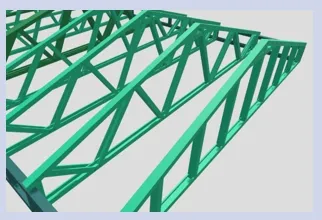

Profile Effect & Application
Design Software & Production System
(International leading brand for LGS construction design)
Our Factory
Why Choose FrameTec
FrameTec is a specialized manufacture focusing in high quality roll forming equiments for the construction of light steel frame structure & cold formed steel structures.
For many years, FrameTec insists on cooperating with customers as a partner and actively provides effective solutions to ensure reliable product performance, advanced technology and easy operation, and promote users to a higher position in the fierce market competition.
All our machines have a built in Windows based machine control which accepts a basic CSV file from a range of design software options that link to our machine. This gives freedom of choice to the customer.
FrameTec specializes in Designing and Manufacturing Steel Framing Machines for Panels, Trusses and Floor Joists in:
Residential and Commercial buildings
Steel framed systems for modular & prefabricated buildings
Walls framed for low and high rise buildings
Walling, floors, beams, roofing, kitchen & bathroom pods
Storage, recreational, transportable dwellings
FAQ
1. Q: Do you have after-sales service?
A: Yes, we have good after-sales service and technical support.
2. Q: What are the advantages of light steel buildings?
A: Improved efficiency; improved accuracy; simple operation; data management; safe operation.
3. Q: Are light steel buildings lightning-proof?
A: The galvanized material of the light steel buildings is closely connected to the surface to form a complete lightning protection system.
4. Q: Does the fire protection grade of light steel buildings meet the standard?
A: The fire protection level of light steel buildings reaches the national level four fire protection standards.
5. Q: Waterproofing treatment for light steel buildings?
A: The light steel buildings roof system consists of roof trusses, structural OSB boards, waterproof membranes, heat reflective films, and roof tiles.

---
