Vertical Drilling Machine Z5150b

Product Description

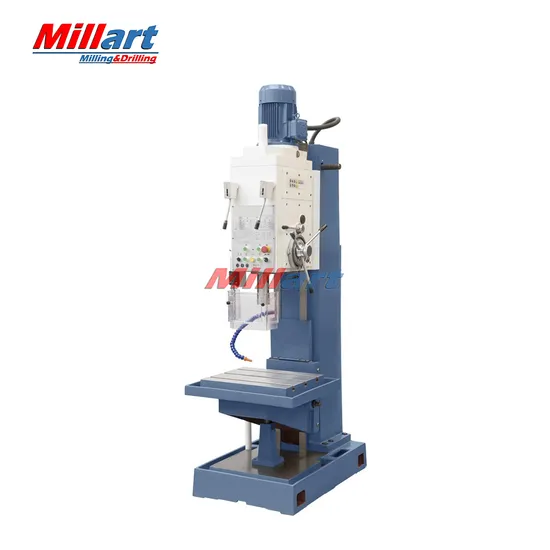

Vertical Drilling Machine Z5150B
Features:
Square-column vertical drilling machine is a universal general-purpose machine. Its used for counter-sinking, spot-facing drilling, tapping, boring, reaming, etc.
The machine has catch the function of tap-automatically reversing device which is suitable for tapping of blind and determined holes.
The machine has high efficiency, high accuracy, low noise, wide range of variable speed, centralized controls good looking appearance, easy maintenance and operation.
Model Z5150B-1 with cross table, can move on X and Y axis.
Technical parameter:

Model	Z5150B
Max drilling dia (mm)	50
Max tapping dia (mm)	M42
Spindle torque (Nm)	350
Spindle taper (mm)	MT5
Spindle travel (mm)	250
Spindle box travel by manual (mm)	200
Spindle speed steps (mm)	12
Spindle speed range (mm)	31.5-1400
Spindle feed steps (mm)	9
Table size spindle feed range (mm)	0.056-1.80
Table size (mm)	560x480
Table vertical travel (mm)	300
Max distance from spindle to table (mm)	750
Distance from spindle to column(mm)	335
Main motor power (kw)	3
Overall size (mm)	1090x905x2465
Net Weight (kg)	1270

Standard accessories:
Coolant system
Work lamp
Drill chuck
Reduction sleeve
Wrenches
Optional accessories:
Machine vise
Spindle guard

---
