US$8,400.00-9,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
Certification
GS, CE, RoHS, ISO 9001
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Max. Table Load(Kg)
500kgs
Table Travel
700/255/350(Manual) 680/244/330(Auto)
Control Method
Semi-Closed Loop Control
Transport Package
Export Wooden CTN
Specification
2294*1770*1904
Product Description

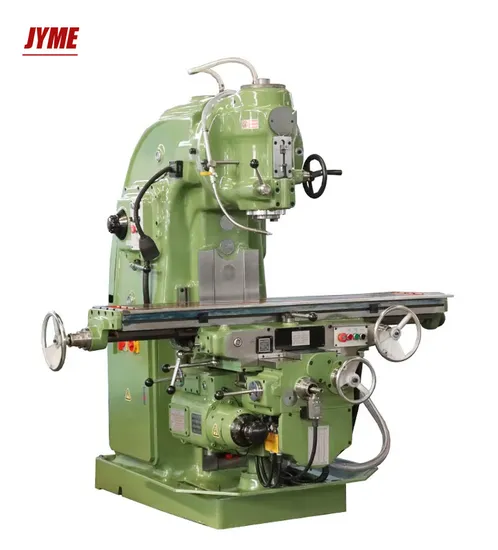

1. Vertical lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Product main technical parameters:
Specifications
| Units
| X5032B
| X5032BH
|
Table size
| mm
| 320×1600
| 320×1600
|
T-type slot (NO/width/pitch)
| mm
| 3/18/70
| 3/18/70
|
Max. longitudinal travel of table (manual/automatic)
| mm
| 900/680
| 900/880
|
Max. transverse travel of table (manual/automatic)
| mm
| 255/240
| 255/240
|
Max. vertical travel of table (manual/automatic)
| mm
| 350/330
| 440/430
|
Rapid feed speed (X,Y,Z)
| mm
| 2300/1540/770
| 2300/1540/770
|
Swivel angle of vertical milling head
|
| ±45°
| ±45°
|
Spindle travel
| mm
| 70
| 70
|
Distance between spindle axis and column guide way
| mm
| 350
| 350
|
Spindle bore
| mm
| 29
| 29
|
Spindle taper
|
| 7:24 ISO50
| 7:24 ISO50
|
Distance between spindle nose and table surface
| mm
| 60-410
| 60-500
|
Spindle speed step
|
| 18
| 18
|
Spindle speed range
| r.m.p
| 30-1500
| 30-1500
|
Feed range of table travel
|
| 18
| 18
|
Main motor power
| kw
| 7.5
| 7.5
|
Rapid motor power
| kw
| 2.2
| 2.2
|
Overall dimensions
| mm
| 2294×2050×1904
| 2294×2050×2084
|
N.W. /G..W.
| kg
| 3000/3300
| 3000/3300
|
Details:
Machine in factory:
>>
