11.6-Inch High-Definition 5MP LCD Digital Veterinary Biological Microscope (DM-500L)

Product Description

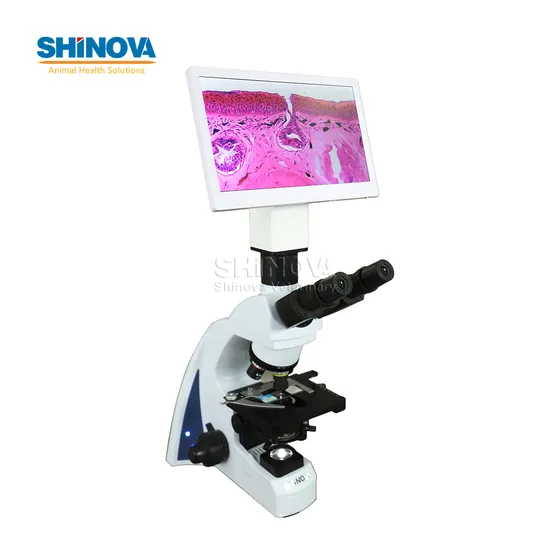

Digital Biological Microscope
Model: DM-500L

Product Description High-definition 5MP CMOS image sensor for clear images
11.6-inch large LCD screen and 1080P resolution offer more image details
Fully digital user interface supports image zoom, mouse operation, USB storage and HDMI output
Streamlined design makes the operation easy and comfortable
Infinity optical system with excellent image quality
sliding-in centerable condenser offers effective illumination and convenient replacement of attachment such as phase contrast and dark field
Eyepiece observation with upwards 180° rotation raises eyepoint level for the users of different heights
Hidden handle for easy carrying
Lamp replacement by direct removing housing

Product Parameters

Items	Specifications
Display	11.6-inch LCD screen
Pixel	5.0MP
lmage sensor	Color CMOS
Display resolution	1080P
Pixel size	1/2.8"
Method of operation	Mouse
Lens interface	C-type
Output method	HDMI
Power adapter	DC 12V
White Balance	Auto / Manual
Exposure	Auto / Manual
Shutter speed	1/50s(1/60s) - 1/10000s
Saving function	U-disk storage
Viewing head	Seidentopf binocular viewing head, 30° inclined, interpupillary 48-75mm
Eyepiece	Wide field eyepiece WF10X/18
Objective	lnfinite semi-plan achromatic objectives 4X, 10X, 40X, 100X
Nosepiece	Quadruple nosepiece
Stage	Double mechanical stage 140mm*140mm / 75mm*50mm
Condenser	Sliding-in centerable condenser NA1.25
Optical system	lnfinite optical system
Focusing system	Coaxial coarse and fine adjustment with division 0.002mm, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 20mm
Illumination	S-LED illumination, brightness adjustable

Optional Attachments
Eyepiece: Extra wide field eyepiece EW10X/18, wide field eyepiece WF10X/22
Objective: lnfinite plan achromatic objectives 4X, 10X, 40X, 100X
Nosepiece: Quintuple nosepiece
Stage: Double mechanical stage 150mm*139mm / 75mm*52mm, 230mm*150mm / 79mm*53mm
llumination: 6V/20W halogen lamp, brightness adjustable
Phase contrast kit
Polarization set
Fluorescent attachment
Dark field attachment
