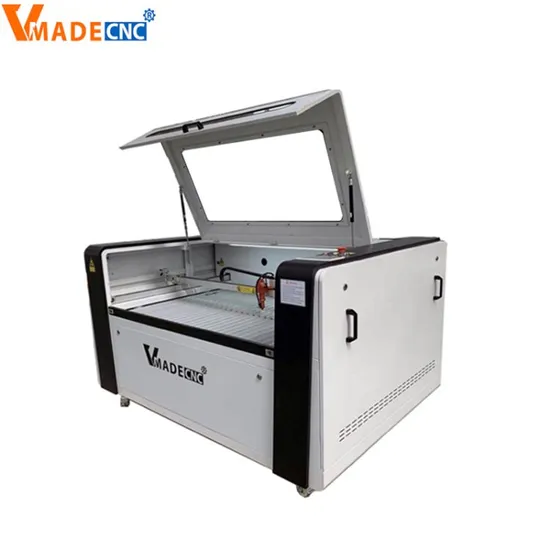

150W 1390 Metal and Non Metal CNC CO2 Laser Engraving and Cutting Machine for Metal

Product Description

Product Description
This CO2 engraving machine integrates the newest light, machine and electricity mechanical movement to design this high precise and high speed three generation modal CO2 LASER Engraver. This brand new DC-KIII CO2 laser engraver is equipped with one 40W 60W `100W 120W 160W water cooling laser tube, high precise stepping motors, high quality control board. It employs an USB port and thus can be connected to your laptop or desktop. By the support of included software, Coreldraw, this machine can work well with multiple graphic formats including EMF/JPG/PLT/WMF. CorelDraw has the ability of both NewlySeal and NewlyDraw and so it can be employeed in both carving and cutting works.
Feature 1).Isolate between laser tube and working area, guaranteethe laser tube safety and make the light path clean.
2).All switches, sockets and fast connection are not jut out of the surface of the machine, adopt fireproof glass for safety operation.
3).With the drawer and the funnel design for remnant, it is convenient to use.
4).Automatic life table, rotary device are optional to process circular object.
5).Optional double laser heads cutting machine so that the exponential growth efficiency.
6).Suitable for large and medium-sized enterprise in the mass production, and also suitable for small enterprice and individual processing
Configuration

Machine model	4060 6090 1309 1325 1530
Control system	RUIDA M2
Cooling system	Water chiller
Working size	400*600mm 600*900mm 1300*900mm 1300*2500mm 1500*3000mm
laser power	60W 80W 100W 130W 150W 180W

- Singapore imported lens
- DSP control system offline, USB interface
- :water chiller.
- Air pump cools materials
- Oxidized Aluminum Knife worktable for wood, acrylic cutting
- Honey comb worktable for leather, fabric, paper cutting
- Exhaust fan and pipe
- English version machine software manual
- Adopt international linear rail, more precision
- CD install and operation video
- Free Red light Pointer
Application sample

Workshop

FAQ
Q: Do I need two laser machines to engrave and cut separately?
A: No, the laser machines we provide are capable of both engraving and cutting. One machine alone can fulfill the two purposes.

Q: What kind of graphic format does it support?
A: JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW , etc

---
