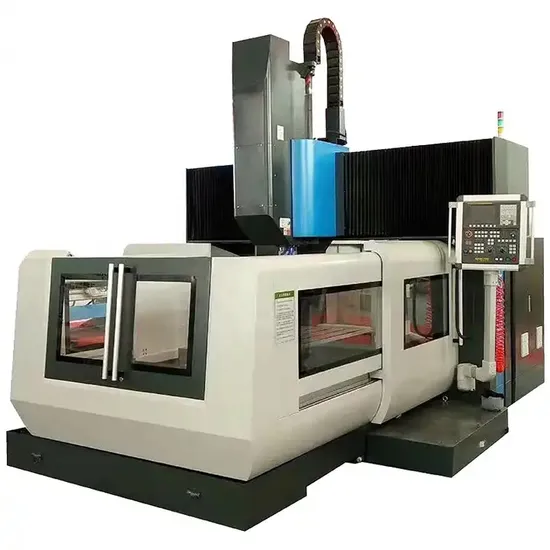

Milling Machine Center Lm2206b CNC Gantry Machining Center

Product Description

Product Description
CNC Gantry Milling Machine Features:
1.Extremely rigid and stable structure, the oversized column combined with box type beam construction features additional machine rigidity.
2.The slant beam construction with increased slide way surfaces efficiently upgrades force distribution area this results in greater stability.
3.The spindle head is located at the center of beam, providing high movement accuracy, superior heavy cutting capability and outstanding rigidity. The position is specially designed with symmetrical to center.
4.Equipped with spindle motor ball screw and double counter-balance cylinders are all properly located at the best positions to avoid unequal torque, while assuring the best structural accuracy.
5.The double counter - balancing cylinders on Z-axis are suspension supported, close to the movement gravity center, symmetrical to the spindle drive ball screw and the center of spindle motor. Optional position design not only fully eliminates the possibility of unequal torque, but also provides high feeding accuracy and machining accuracy.
6.Linear ways on X/Y-axis combined with box ways on Z axis. Product Parameters
CNC gantry machining center is a kind of mechanical equipment used in industrial production. It can be automated through computer programs, including parts processing, positioning, testing, etc. CNC gantry machining center has the advantages of high efficiency, high precision and high stability, so it is widely used in machinery manufacturing, automobile, electronics, medical equipment and other fields. 1. Structure CNC gantry machining center is composed of machine tool body, CNC system, machine tool accessories and other parts. The machine tool body includes bases, columns, beams, worktables, spindles and other parts. The CNC system is a key part of maintaining the machine tool. It includes CNC equipment, computers, control software, etc., which can control the operation, processing flow and some additional functions of the machine tool. Machine tool accessories include cutting tools, fixtures, tool magazines, etc., which can cooperate with the machine tool itself for cutting, positioning and other processing processes. 2. Processing principle The CNC gantry machining center can complete a variety of different machining processes, including drilling, milling, boring, tapping, grinding and so on. Its processing principle mainly relies on the cutting tool to remove the material of the workpiece, so as to realize the processing of the geometric shape, contour, size and other precision requirements of the workpiece. There are many kinds of cutting tools, including high-speed steel tools, carbide tools, multi-edge tools, ball-end tools, etc. The choice of cutting tools is mainly determined by the processing material and processing form. During the operation of the machine tool, the CNC system controls the position, direction, speed and other parameters of the tool through the preset program to carry out the machining process. At the same time, many elements such as the positioning, transmission, and control of the machine tool itself need to be considered, so as to ensure the stability, efficiency, and high precision of the machining process.

Specifications	Units	GMC1611	GMC2013	GMC2016
Table size	mm	1600x900	2000x1000	2200x1400
X axis travel	mm	1600	2000	2100
Y axis travel	mm	1100	1300	1630
Z axis travel	mm	600	600	700
Distance between spindle nose and worktable surface	mm	190-790	140-740	150-850
Gantry width	mm	1100	1300	1650
T slot(number-width-pitch)	mm	7-18x125	7-18x140	7-22x170
Max. spindle speed	rpm	8000	8000	6000
Spindle taper	mm	BT40 (Optional:BT50 )	BT40 (Optional:BT50 )	BT40 (Optional:BT50 )
Main motor power	kw	11	11/15	15/18.5
Guide rail type		RGW/H 55 Linear guide	RGW/H 55 Linear guide	RGW/H55Linear guide
X/Y/Z rapid traverse speed	m/min	18/18/15	18/18/15	15/15/12
Max.table load	Kg	1600	2000	4000
Cutting feed speed	mm/min	1-10000	1-10000	1-10000
Tool magazine		Arm 24	Arm 24	Arm 24
Max. tool diameter	mm	φ112 (Adjacent)/ φ200(Apart)	φ112 (Adjacent)/ φ200(Apart)	φ112 (Adjacent)/ φ200(Apart)
Max.tool weight	kg	18	18	18
PULL		P50T-1(45°)	P50T-1(45°)	P50T-1(45°)
Tool change time	sec	2.5	2.5	2.5
Machine weight	kg	11000	15000	17000
Overall dimension	mm	4680*3300*4200	6000*3550*4200	6000*3800*4350

Detailed Photos
