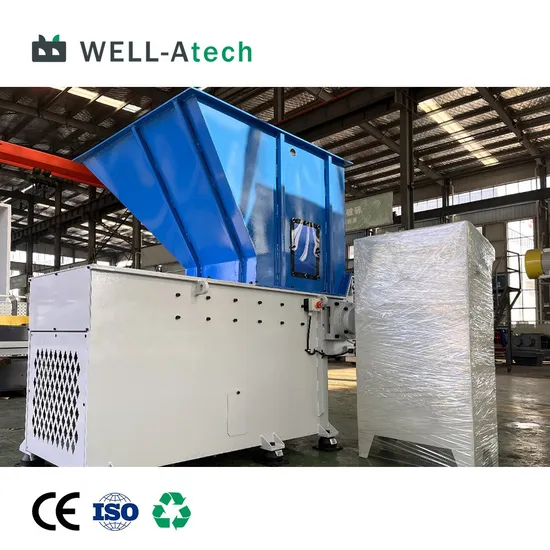

Single Shaft Recycling Scrap Copper Wire Shredder Plastic Pipe Shredding Machine

Product Description

The WES series single-shaft shredder is applied in the refinement and waste recovery of small to medium-sized materials across various industries.It primarily handles high-hardness, high-toughness rubber materials, plastic products, wood, and industrial waste paper, producing uniformly sized particles after shredding.
This series of shredders features low rotational speed, high torque, and a compact structure, maintaining stability and durability in harsh industrial environments. The screen structure and blade layout can be customized based on the material characteristics and discharge requirements to achieve satisfactory results.
Product Description

Project Site

Product Parameters

Model		WES-600	WES-800	WES-1000	WES-1200	WES-1400
Shredding Chamber(mm)		500*580mm	850*800mm	850*1000mm	850*1200mm	850*1400mm
Power		18.5KW	37KW	45KW	55KW	75KW
Hydraulic Power		1.5KW	3.7KW	3.75KW	5.5KW	5.5KW
Rotor Blades QTY		26 pcs	38 pcs	52 pcs	58 pcs	82 pcs
Counter Blades QTY		4 pcs	4 pcs	4 pcs	4 pcs	4 pcs
Rotation Diameter		250 mm	400 mm	400 mm	400 mm	400 mm
Shaft length		580 mm	800 mm	1000 mm	1200 mm	1400 mm
Speed		80rpm	80rpm	80rpm	80rpm	80rpm
Capacity(max)		0.5 t/h	1.2 t/h	1.5 t/h	2.0 t/h	2.2 t/h
Net Weight		1.75 t	4.15 t	4.308 t	5.3 t	5.9 t
Dimension		1760*1300*1850mm	2850*1760*2210mm	2850*1960*2220mm	2850*2560*2330mm	2850*2760*2330mm
Voltage		Can be customized

Features

Application

+ Plastic: Plastic film, PET bottles, Plastic lump etc
+ Chemical Fiber: Carpet, Labor protection clothing etc
+ Industrial Waste: Sponge, Textile, Leather, Wood etc
+ Paper: Document, Packing paper, Cardboard etc
+ Cables: Copper cable, Aluminum cable, Composite cable etc
+ Aluminum: UBC, Aluminum shaving etc
