Large Fixed Beam Gantry Milling Machine with Two Milling Heads Portal Milling Machine Double Column Milling Machine

Product Description

Main Features

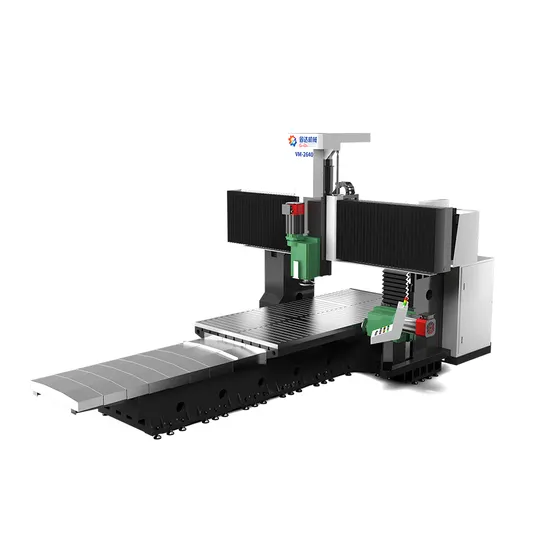

GooDa CNC Gantry Milling Machine with Fixed Beam VM-2640NCA equipped with one vertical and one horizontal gear-driven spindles, is widely used in the machining of large and heavy black and non-ferrous metal parts in the mechanical industry.
It features a bridge-like structure (the gantry), which consists of a horizontal beam supported by vertical columns, allowing it to process metal workpieces with high precision and stability.
The machine is controlled by computer numerical control (CNC) technology, allowing for automated and precise milling operations.
Two milling heads
Equipped with 1 vertical milling heads and 1 side milling heads, using original Taiwan brand, with high rigidity, high torque, and good surface finish.
The 2 milling heads can achieve multi-sided machining at one time with high efficiency. There is no need for multiple setups.
Machine body
Increased size of the column, thickened guideway track;
Hydraulic locking device for the lifting of the cross rail, improving the stability during heavy cutting;
Widened and thickened base increases the load-bearing area and improves overall strength.
Material
The casting is reinforced and thickened, high-temperature quenched;
Heavy-duty roller guideway and hard guideway design ensure the service life and accuracy of the guideway.
Worktable
The worktable is driven by a servo motor with superior transmission performance;
Thickened box-type design, not easy to deform, increases the load-bearing capacity.
Main Functions
-Automatically positioning, measuring, processing, and removing chips;
-Full-travel wrapped ram;
-1 vertical milling head & 1 side milling head;
-Optional belt or gear-driven spindle;
-Optional CNC system;
-Customization as required.
Product Parameters

Model	VM-2640NCA
Category	Attribute	Value	Unit
Cutting size	Distance between columns	2500	mm
	Y-axis stroke	2400
	Max. workpiece length	4000
	Max. workpiece height	800
	Z-axis stroke	810
	Max. workpiece length(side milling)	4000
	Max. workpiece height(side milling)	500
	W2-axis stroke(side milling)	300
Worktable	Worktable size	2000*4000	mm
	Magnetic chuck size	2000*4000
	Max. load	12000	kg
Vertical milling head (Gear-driven spindle)	Spindle motor output	22	kW
	Spindle taper	BT50(7:24)	/
	Spindle speed	50-500	C/S
	Cutter diameter	250	mm
Side milling head (Gear-driven spindle)	Spindle motor output	15	kW
	Spindle taper	BT50(7:24)	/
	Spindle speed	50-500	C/S
	Cutter diameter	250	mm
Balancing system	Balancing system on Z-axis	Nitrogen cylinder	set.
X/Y/Z/W1/W2-axis	Travelling speed	6000/6000/6000/3000/3000	mm/min
	Motor output	5.5,3,3,2,2	kW
Machine weight & size	Size(L*W*H)	9100*5000*4100	mm
	Weight	~30000	kg

Core Components
Spindle
High-speed and precise operations for metalworking
Linear Guideway
Stability, precision, and durability in automated systems
Ball Screw
Smooth and accurate movement in machinery
Servo Motor
Excellent speed control and torque performance
Company Profile
Factory Display

Certifications

FAQ
Q1. What is your minimum order quantity and warranty?
A1: MOQ is one set, and the warranty is 12 months.
Q2. What CNC system do you use?
A2: FANUC, SIEMENS, MISTSUBISHI, etc. It depends on your choice.
Q3. When is the delivery time?
A3: For conventional machines, we will deliver them within 30-45 working days after receiving your deposit; For special machines, the delivery time may be longer, and we will provide you with an updated timeline accordingly.
Q4. What is the packaging for the machines?
A4: Packaging: PE bag cover (inside), plywood box, and steel beam frame. Other packing methods are also available.
Q5. How can I select the most suitable machine?
A5: Please let us know your machining requirements or the machine size, and we can recommend the best model for you.
Alternatively, you can choose the exact model yourself. You can also provide us with the product drawings, and we will help you select the most appropriate machine.
Q6. What are your trade terms?
A6: FOB, CFR, CIF, or other terms are all acceptable.
Q7. What are your payment terms?
A7: We accept T/T with a 30% deposit when placing the order and the remaining 70% balance before shipment.
We also accept an irrevocable letter of credit (LC) at sight.
Production will begin once we receive the advance payment. When the machine is ready, we will send you pictures. After receiving the balance payment, we will proceed with the shipment.
Q8: Are you a manufacturer or a trading company?
A8: We are a combined manufacturing and trading company, specializing in the innovative development and production of machine tools, with extensive experience in global exports. We warmly welcome you to visit our factory.
Q9: Can you provide OEM services?
A9: Absolutely. We are happy to create a customized plan based on your requirements and offer the best service to meet your needs.
Q10: How can we receive training for the machines?
A10: You can send your team to our factory for free training, or we can arrange for one of our engineers to travel to your location for on-site training.

---
