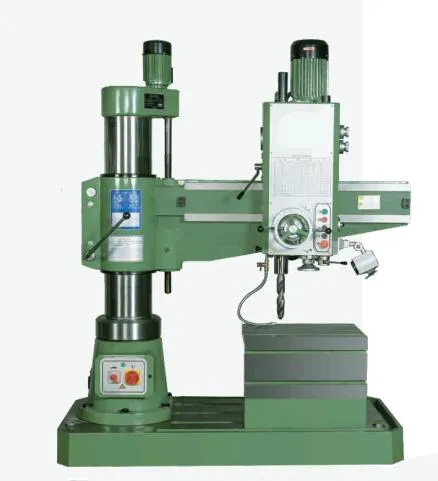

Radial Arm Drilling Machine Z3032X10/Z3040X10

Product Description

Radial Drilling Machine Z3032X10/Z3040X1
The Radial Drilling Machine, It's construction designed elaborately, with perfect appearance and convenient maintenance .The head stock radial arm and columns are clamped by manual clamping mechanisms.
It has feature of wide speed and feed range, compact operation key, reliable and enough rigidity.
The machine has a ample rigidity and powering drilling, counter boring, spot facing reaming,tapping, even boring when equipped with a special device. It is widely used in every department of machining medium and small sizes workpieces.

Specification:

Model No.	Z3032X10	Z3040X10
Item No.
Moving
Max,drilling capacity	32 mm	40 mm
Distance spindle axis to column generating line	200-1000 mm	200-1000 mm
Diameter of column	240 mm	240 mm
Spindle
Spindle taper	MT4	MT4
Spindle travel	250 mm	250 mm
Spindle speed range	71-1800 r/min	71-1800 r/min
Spindle speed series	8	8
Range of spindle feeds	0.13-0.54 mm/r	0.13-0.54 mm/r
Mpindle speed series	4	4
Dimension spindle nose to working surface of base	264-1064 mm	264-1064 mm
Dimension of worktable	400x450x400 mm	400x450x400 mm
Dimension of base	1500x740x160 mm	1500x740x160 mm
Other
Overall size	1730x750x2360 mm	1730x750x2360 mm
Power of main motor	2.2 kw	2.2 kw
Packing dimension	187X97X220 cm	187X97X220 cm
G.W/ N.W.	1600/1530 kg	1600/1530 kg

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
