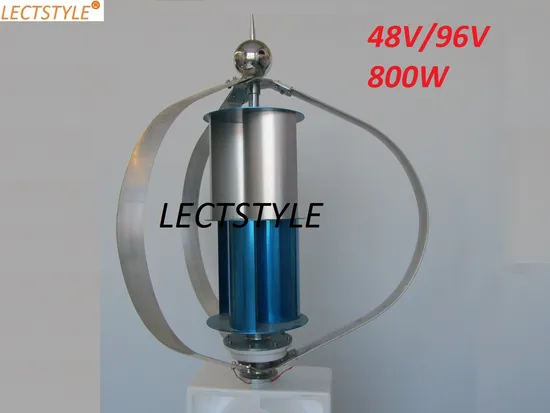

AC 48V96V 800W "Q"Type Vertical Wind Turbine Price China

Product Description

800W Wind Turbine/Generator - 48v / 96v --With Charge Controller / Without Charge Controller --Low wind speed start-up : 2m/s --Blades : 3 pcs or 5pcs , White . (if you need Black color blades ,please leave us a message .) --Max Power : 860W Featurers
1. Low start-up speed,high wind power utilization, light,cute, low vibration.
2. Human-friendly design,easy to install and maintain.
3. Blades using reinforced glass fiber, helped with optimized structure and aerodynamic shape, it enhanced wind power coefficient and power generating capacity.
4. Using patented permanent magnet generator and special stator, it effectively reduces torque resistance and guarantees the stability .
Product Details
Aluminum alloy body, synchronous permanent magnet generator.
Oxidation of the wheel hub. Flange connection is more secure.
Technical Data

Rated power	800W
Maximum power	860W
Rated voltage	48V / 96 V
Start-up wind speed	2.0m/s
Rated wind speed	13m/s
Survival wind speed	50m/s
Top net weight	75 kg
Wheel diameter	1.4m
Number of blades	3/5
Blades material	Nylon fiber
Generator	Three phase permanent magnet ac synchronous generator
Magnet	NdFeB
Generator case	Casting aluminum alloy
Control system	Electromagnet/wind wheel yaw
Speed regulation	Automatically adjust windward direction
Working temperature	-40ºC-80ºC

Wind Turbine Product Drawing USER MANUAL For Q4 Model Maglev Vertical Wind Generator
Part1. Safety Warning and the Attention
Part2. Product Description
Part3. Tower and Accessories Production
Part4. The wind generator Installation Steps
Part5. The Connection between Transmission Line and the Controller
Part6. The Maintenance and Attention in Operation
Part7. Packing list
Part8. Quality Guarantee
Wind Turbine Package Picture

Return & Refund
30Days Return & Refund
Unhappy with the Product --- Return ;
Unhappy with the Service --- Return ;
Unhappy with the Seller --- Return ;
No Reason --- Return . Warranty
2 years Warranty for replacement or repair , life time parts support and technical support .
1. GAIA NEW ENERGY is your trusted partner for long term business.We arethe MANUFACUTER of the solar inverter. We are responsible forthe quality of the inverter. The inverter has 2 years guarantee. We provide technical support and service for the inverter the whole life. All inverters would be double tested before shipment to be guaranteed in brand new condition and work perfectly.
2. Returns for exchange are permitted and must be initiated by the buyer within 30 days of receipt. All return items must be in their original condition. Return shipping and handling charge will be at the buyer's expense first. Please do contact with us for return address, details and any other issues.
3. We will not be responsible for any delay during delivery including but not limited to the customs package checking, strike, force majeure, etc.
4. We can declare lower value on the invoice for the duties reason, which does not reflect the total price you paid or the market value of the product. It may not apply to countries with different tariff rules. We are not responsible for any custom duty or import tax.
5. In case there is problem with your order, make sure CONTACT US before leaving negative feedback. FAQ:
1.Why are your prices so low, are these quality items and brand new?
We sell brand new items directly from factory in Asia. That is why our prices are so competitive.
To maintain quality control ,we do personally inspect for each item prior to shipment. All items are 100% new and inspected.

2. What kind of region can be installed wind turbine?
Small wind turbines should be applied in the regions which wind reso urces is sufficient. The annual average wind speed should be more than 3m/s, the effective wind speed 3-20m/s should be more than 3000h in accumulation per year. The density of 3-20m/s effectively average wind power should be more than 100W/m^2
It should be noted that choosing the rated design speed wind turbine is in conformity with local design speed. It is significantly in making use of wind resources and in economic aspect. Wind tunnel test proves that the fan power transformation of the impeller in the direct ratio with wind speed, that is to say, the wind speed decide the output electrical power.
