Quality 3-5 Layer Plastic PA/PE Co-Extrusion Sausage Casing Blown Shrink Film Production Line Extrusion Machine Film Blowing Machine Three Layer Film Blowing Ma

Product Description

Product Parameters
three Screw Film Blowing Machine

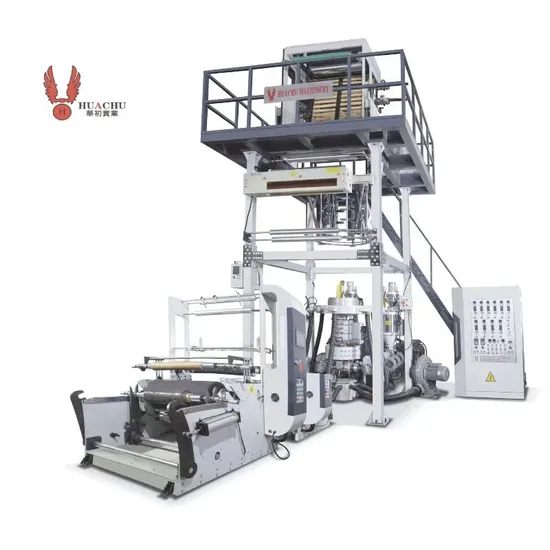

Three Layer Film Blowing Machine
The Film blowing machine is used to blow the plastic films like LDPE (low density polyethylene), HDPE (high density polyethylene) and LLDPE (linear low density polyethylene) into bubble film. Its products are widely used to pack fruit, food, clothes, textile, like garbage bags and vest/T-shirt bags, shopping bags and daily necessities and other industrial products.
The Film blowing machine is used to blow the plastic films like LDPE (low density polyethylene), HDPE (high density polyethylene) and LLDPE (linear low density polyethylene) into bubble film. Its products are widely used to pack fruit, food, clothes, textile, like garbage bags and vest/T-shirt bags, shopping bags and daily necessities and other industrial products.
Optional equipment:
1). Auto load
2). Air compressor
3). Special die
4). Die rotary device
5). Bouble sides winder
6). Up and down
Technology Parameter

MODEL	HLD45-700F	HLD55-900F	HLD65-1300F
SUITABLE MATERIAL	HDPE, LDPE,LLDPE	HDPE, LDPE,LLDPE	HDPE, LDPE,LLDPE
LAYER NUMBER	1-Layer	1-Layer	1-Layer
FILM THICKNESS	HD: 0.009-0.05MM LD: 0.03-0.15MM	HD: 0.009-0.15MM LD: 0.03-0.15MM	HD: 0.009-0.15MM LD: 0.03-0.15MM
MAX OUTPUT	60KG/H	80KG/H	150KG/H
MAX FILM WIDTH	600MM	800MM	1200MM
EXTRUSION UNIT
SCREW DIAMETER	Φ45X1	Φ55X1	Φ65X1
SCREW L/D RATIO	30/1	30/1	30/1
SCREW MATERIAL	BIMETALLIC	BIMETALLIC	BIMETALLIC
BARREL MATERIAL	BIMETALLIC	BIMETALLIC	BIMETALLIC
BARREL THERMO CONTROL	3X1	3X1	3X1
BARREL COOLING FAN	200WX3X1	200WX3X1	200WX3X1
SCREEN CHANGER	STANDARD	STANDARD	STANDARD
DRIVING MOTOR	15KWX1 SIEMENS	18KWX1 SIEMENS	30KWX1 SIEMENS
GEARBOX	#145	#180	#200
EXTRUSION DIE UNIT
DIE	HDΦ60-80 MM	HDΦ80-100 MM	HDΦ100-120 MM
DIE THEROMO CONTROL	2	2	2
AIR RING	DUAL LIP	DUAL LIP	DUAL LIP
FLANGE THERMO CONTROL	2	2	2
AIR BLOWER	2.2 KW	3.7 KW	5.5 KW
TAKE UP TYPE	UP AND DOWN	UP AND DOWN	UP AND DOWN
TAKE UP UNIT
BUBBLE CAGE MATERIAL	WOODEN	WOODEN	WOODEN
TOP NIP MATERIAL	WOODEN	WOODEN	WOODEN
TAKE UP ROLL MATERIAL	HIGH TEMP RUBBER	HIGH TEMP RUBBER	HIGH TEMP RUBBER
TAKE-UP ROLLER LENGTH	700MM	900MM	1300MM
GUSSET	INCLUDED	INCLUDED	INCLUDED
TAKE-UP MOTOR	1.5KW GEAR MOTOR	1.5KW GEAR MOTOR	2.2KW GEAR MOTOR
TAKE-UP SPEED	10-80M/MIN	10-80M/MIN	10-80M/MIN
PINCH PATTERN	PNEUMATIC	PNEUMATIC	PNEUMATIC
WINDING TYPE	SINGLE MANUAL WINDER	SINGLE MANUAL WINDER	SINGLE MANUAL WINDER
WINDING UNIT
WINDING ROLLER LENGTH	700MM	900MM	1300MM
WINDING SHAFT	STOPPER SHAFTX2	STOPPER SHAFTX2	STOPPER SHAFTX2
BANANA ROLLER	INCLUDED	INCLUDED	INCLUDED
MAX DIA.OF WINDED ROLL	800MM	800MM	800MM
WINDING MOTOR	TORQUE MOTOR WITH DELTA INVERTOR , TAIWAN DESIGN	TORQUE MOTOR WITH DELTA INVERTOR, TAIWAN DESIGN	TORQUE MOTOR WITH DELTA INVERTOR , TAIWAN DESIGN
SPEED CONTROL	SPEED CONTROLLER	SPEED CONTROLLER	SPEED CONTROLLER
HEATING SYSTEM	ACR+PID (ENERGY SAVING)	ACR+PID (ENERGY SAVING)	ACR+PID (ENERGY SAVING)
ELECTRIC CONTROL BOX
TEMP. CONTROLLER	OMRON	OMRON	OMRON
WORKING VOLTAGE	380V,50HZ	380V,50HZ	380V,50HZ
INVERTER BRAND	DELTA (TAIWAN)	DELTA (TAIWAN)	DELTA (TAIWAN)
SOLID-STATE RELAY (SSR)	FOTEK (TAIWAN)	FOTEK (TAIWAN)	FOTEK (TAIWAN)

Degradable Film Blowing Machine

Uasge:Used for the production of vest bags, garbage bags
Advantages: can be fully degradable, no pollution

Applicable raw materials:Suitable for PLA, PBAT, corn starch, calcium carbonate, biological degradation materials
Detailed Photos
Company Profile

We are Taiwan Quality High Speed Blown Film Machine suppliers/manufacturers from china factory . We can produce the Taiwan Type High Speed Blown Film Machine according to the client's requirement. We are always try our best to become the good Taiwan Type High Speed Blown Film Machine, film blowing machine manufacturers/suppliers and welcome the customer from all over the world to contact with us.
Workshop

Packaging & Shipping

FAQ
A. When your company was found?
B. our sales team has more than 15 years experience in the plastic machinery industry.
A. What are products do you supply?
B. We are manufacturer of Plastic/Biodegradable film blowing machine,Bag making machine,printing machine,plastic recycling machine etc.
A.How about your products warranty ?
B.One year(12 months) Warranty will be provide from the date of container arrive Clients'factory.If machine parts are broken due to quality problem within warranty period, we will send new part for free( Any artificial misuse or destory prepensely is not included within the limitation of Quality Guarantee).
A. What are your Payment and delivery terms?
B.Payment term:
1) T/T, 30% as prepaid ,70% before delivery
2) L/C, 30% by T/T ,70% as L/C at sight, and for clients from Bangladesh&Ethiopia ,we accept 100% L/C at sight.
Delivery time: Standard will be in 30-40 working days
A.What Technical Support we can get if order machines
B.We can provide Installation Drawings,Basic operating instructions,Operation explanation through Video&Photos,Online video calling for technical support if necessary.

---
