Basic Info.
Installation
Vertical Type
Rated Power
0.06kw~~0.37kw
Speed Ratio
5/10/15/20/25/30/40/50/60/80/100
Housing Material
Aluminium Alloy
Worm Gear Material
Chromium Alloy 20cr
Worm Wheel Material
Bronze 10#-1
Manipulate Way
Semi-Automatic Manipulation
Manufacturing Method
Rolling Gear
Toothed Portion Shape
Spur Gear
Transport Package
1set/Carton, Several Cartons/Wooden Case
Specification
CE; ISO9001
Origin
Taizhou Zhejiang China
Production Capacity
30000set/Month
Packaging & Delivery
Package Size
14.50cm * 10.00cm * 17.00cm
Package Gross Weight
2.300kg
Product Description

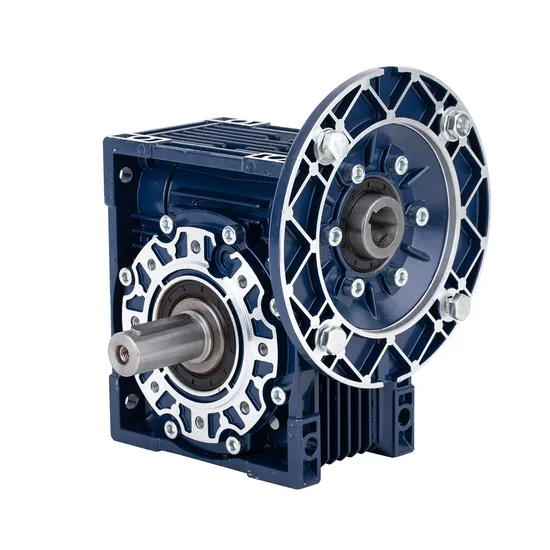

NMRV040 Worm Gearbox Speed Reducer Machine Manufacturer Quick Details
| Place of Origin: Zhejiang, China (Mainland) | Brand Name: Chenxin |
| Gearing Arrangement: Worm | Output Torque: 8~54NM |
| Rated Power: 0.06kw~0.37kw | Input Speed: 1400rpm |
| Output Speed: 14~280rpm | color: blue/siliver |
| Speed Power:5/10/15/20/25/30/40/50/60/80/100 | Housing material: Aluminium Ally |
| Worm gear material: Chromium alloy 40cr | Worm Wheel material: bronze 10#-1 |
| Certificate: ISO9001:2008 | Oil seal: NAK oil seal |
| Lubricant: Mineral/Synthetic | Extra sevice: OEM |
| Quality Guarantee: One year | |
Packaging Details
1set/carton, several cartons/wooden case
Package size:145*175*195mm
Package weight:2.8kg
Delivery Detail: 5~35 days
Features 1.Wide transmission rate, strong output torque
2.Compact mechanical structure, light weight, small volume&Good heat-dissipating
3.Smooth operation with lower noise or vibration
4.Easy mounting, free linking, high efficiency
5. PERFECT SUBSTITUDE FOR MOTOVARIO AND BONFIGLIOLI PRODUCTS Applications
Wide range of application,including light industry of food &beverage, Cement,
package,construction material,chemicals and etc.
Technical data
| Model | RV025 030 040 050 063 075 090 110 130 150 |
| Single unit versions | NMRV - fitted for motor flanged coupling,
NRV - with input shaft,
NMRV-E motor flanged coupling with worm extension shaft,
NRV-E with double extension worm shaft,
|
| Power | 0.06----15KW |
| Single unit reduction ratio | 1:5 7.5 10 15 20 25 30 40 50 60 80 100 |
| Output torque | 2.6---1195N.M |
| Worm shaft material | 20CrMnTi with carburizing and quenching.The hardness of surface is 56-62HRC with carbonized layer 0.5-0.8mm |
| Worm wheel material | worm mandrel is HT250,and worm ring gear,ZQSn10-1,hardness is 60HRC |
>>
