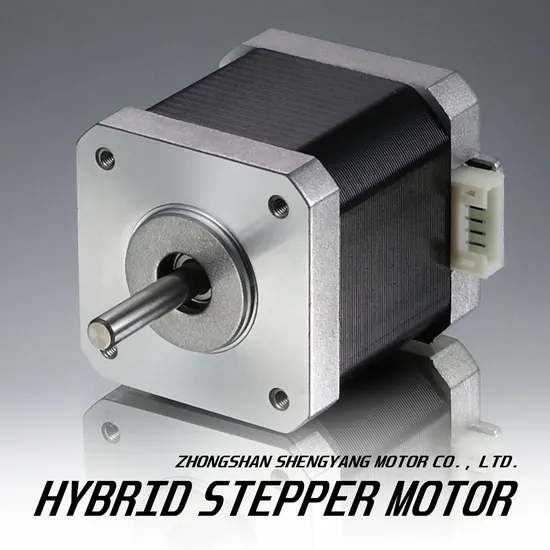

42 mm (NEMA 17) Electrical Stepper Motor for 3D Printer

Product Description

42 MM (NEMA 17) Electrical Motor for 3D Printer Stepper motors, AC servo motors and brushless dc motors are avaiable to customized for the world, NEMA 11, 14, 16, 17, 23, 24, 34 stepper motor, 50W, 100W, 200W, 400W, 500W, 750W, 1000W, 1200W AC servo motor, and brushless dc motor are all included.
The derived products are widely used in ATM machines, digital scanners, stylus printers, plotters, slot machines, CD-ROM drivers, stage lighting, camera lenses, CNC machines, medical machines, 3D printers for industry and our life.
All the derived products of us can be customized for your requirement.
Features: High torque Low noise Smallsize Product Description 1. Specifications:
Motor Model: 42BYGH1101-B-265L, 42BYGH1102-B-20 Step Angle: 1.8° ± 5% full step, no load Holding Torque: 240 mNm (33.98 oz-in), 280mNm (39.6oz-in) Rated Current: 0.4 A DC, 0.84 A DC Motor Length: 34.3 mm (1.35 in) Max Shaft End Length: 265mm (10.43 in), 20mm (0.79 in) Shaft: Screw Shaft, Round Shaft Connectors: Plug-in, Lead Wires Ambient Temperature: -24 ºC - +60 ºC Relative humidity: 90% MAX Resistance Accuracy: ± 10% Insulation Resistance: Larger than 100 mΩ 500 V DC Dielectric Strength: 600 V AC for 1S, leakage current less than 1mA 2.Note:
Performance and parameters can be customized, just simply send your motor diagram or samples to us, the best price will be sent to you soon for your reference
Pricing is decided by the motor's performace and parameters, most importantly decided by your requirment, contact us and get the latest the price list. 3.Payment term: T/T in advance, 30% deposit, 70% balance before shipment.
About Zhongshan Shengyang Motor Co., Ltd.: Zhongshan Shengyang Motor Co., Ltd., established in 2011, has anual production capability of more than 3 million pieces for stepper motor and micro motor. We passed ISO9001:2008 quality system, all of raw materials comply with RoHS, welcome to contact us for more detail.

Series & Length	Model Number	Holding Torque	Rated Current	Resistance per Phase	Inductance per Phase
		mNm oz-in	A	ohm	Mh
42BYGH0 26mm (1.02 in.)	42BYGH001	120 17	0.3	42	48
	42BYGH007	160 22.66	0.4	10.4	14
42BYGH1 33mm (1.30 in.)	42BYGH104	275 38.94	0.4	40	35
	42BYGH107	250 35.40	0.4	22	30
42BYGH2 34mm (1.34 in.)	42BYGH202	220 31.15	0.5	30	37
42BYGH3 40mm (1.57in)	42BYGH312	530 75.05	0.6	26	48
42BYGH4 40mm (1.57 in.)	42BYGH412	420 59.47	1	6.7	9.8
	42BYGH413	300 42.48	1	3.5	5
42BYGH11 34mm (1.34 in.)	42BYGH1101	240 33.98	0.4	30	45
	42BYGH1102	280 39.65	0.84	5.75	9.3

Contacts: Ms. Rita Law
Mobile/(+86) 13631101993
