Nmd90 Romex 300V -25c & -40c Copper Conductor CSA Approved Wire Building Cable

Product Description

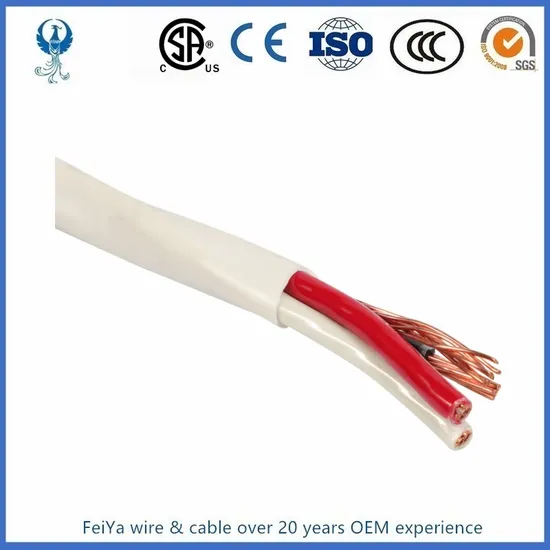

Product Description Canadian Residential Electrical PVC Nylon Insulated Listed NMD90 CSA Cable
Application:NMD90 cables maybe used for both exposed work in dry location work in dry or damp locations.The maximum allowable conductor temperature is 90°C. The minimum recommended installation temperature is -40°C . For two-conductor cables and -10°C for three-conductor cables (with suitable handling procedures). Material should be Properly stored above 0°C for 24 hours prior to installation. The maximum voltage rating for all intended applications is 300volts .Consult the Canadian Electrical Code 1 for further Information related to applications.
Specification:
14AWG-2AWG / All can be customized

Phase Conductor			Insulation thickness	Ground		Jacket thickness	Approx.OD of cable
Size (AWG)	Cores	Strands	mm	Size (AWG)	Strands	mm	mm
14	2	1	0.86	14	1	0.76	4.9*9.9
12	2	1	0.86	14	1	0.76	5.3*10.8
10	2	1	0.86	12	1	0.76	5.9*12.3
14	3	1	0.86	14	1	0.76	8.8
12	3	1	0.86	14	1	0.76	9.8
10	3	1	0.86	12	1	0.76	10.9
8	3	7	1.02	10	1	1.14	14.7
6	3	7	1.30	8	7	1.14	18.1

Protective covering	Nylon & PVC
Jacket	PVC, Heat and moisture-resistant, flame retardant FT1.r
Conductor	Copper 14AWG to 2AWG or aluminium alloy 8000series 12AWG to 2AWG
Insulation	Polyvinyl chloride (PVC)
Temperature range	- 25°C or -40ºC to +90°C
compliances	CSA-C22.2 No.48 (non-metallic sheathed cable) Canadian Electrical Code 1
Voltage	300V
Number of conductor	2 parallel laid,3 and 4 round laid
Color of jacket	•White - General Residential Wiring•Red - 2 Black and Red conductors - 208V-240V Circuits (no neutral)•Orange - No. 10 AWG General Residential Wiring•Yellow - No. 12 AWG General Residential Wiring•Blue - No. 14 AWG - 2 black and white conductors - 120V Arc Fault Circuit Interupter.

Detailed Photos
FAQ Q: Can I have a sample order?
A: yes, we welcome sample orders to test and check quality.
Q: Do you offer a guarantee for the products?
A: Yes, we offer a 1-year warranty on our products.
Q:Can I visit your factory before I place an order?
A:Yes, of course. I'll show you around our whole plant and equipment.
Q:Can I customize the product?
A:Of course, we will customize the exact product according to the needs of each customer.
Q;How to pay after order?
A:T/T, thirty percent down payment and the rest before shipment.
