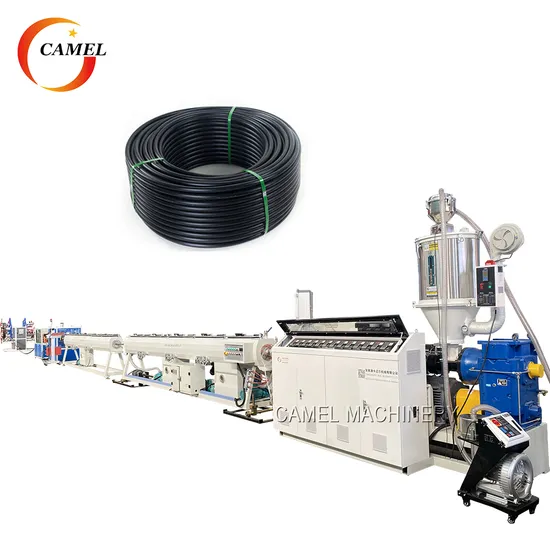

16-63mm Small Diameter High Speed Water Supply Plastic PE Pipe Making Machine

Product Description

Product Description
PE PP EXTRUSION PRODUCTION LINE
HDPE LDPE PIPE MAKING MACHINE
Flow chart of PE/PP pipe extrusion line:
Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder→ color band extruder → mould and calibrator → vacuum calibration machine → cooling tank→ haul-off machine → cutting machine → stacker(or Winding machine)
Application Description:
This Extrusion Line can be used for different diameter PE Pipe production which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, this pipe production line is a preferred for ductwork system of gas, water pipe and agricultural irrigation pipe between city and village.
Characteristics:
· Capacity: single screw extruder, suitable to process PE resin with high capacity, max 1000kg/h · Diameter: from 16 to 800mm
· Adopts reasonable design, absorbing safe producing technology, acquiring CE & ISO certificate Product Parameters
Technical data:

Pipe Range(mm)	16-63	20-110	75-160	90-250	110-315	160-450	315-630	500-800
Extruder	65/30	65/33	75/30	75/33	90/33	90/33	120/33	150/33
Motor power(KW)	30/37	55/75	75/90	90/110	132	160	280	335
Capacity(kg/h)	60-130	100-150	200-300	220-350	300-400	350-450	500-600	700-900
Max. Speed(m/min)	25	15	10	6	3	1.2	1.0	0.8

Detailed Photos
Extruder Vaccum Calibrator Haul-off Machine
Cutter Winder Extrusion mould

Company Profile
Zhangjiagang Camel Machinery Co., Ltd is one of professional manufacturers for plastic extrusion and recycling equipment in China. CAMELMACHINERY aim is to be a top plastic equipment supplier in the world, base on the spirit of this principle, we are not only made our best to meet the market demand but also enhance innovative ability.
CAMELMACHINERY offers following major product lines :
1.PVC/PE/PPR/PP pipe extrusion line
2. PVC garden hose/spiral hose/steel wire reinforced hose extrusion line
3. WPC extrusion line
4.PET bottle recycling line
5.PE/PP film recycling line
6.UPVC PVC ceiling wall panel extrusion line,
7.WPC foam board production line,
8.Single shaft shredder,
9.Double shaft shredder,
10.Plastic crusher and so on...


Certifications
Our Customer
Packaging & Shipping
FAQ
Q1:What about the payment terms?
A1:Always 30% down payment as deposit,70% balance pay before shipping.
Q2:What about the payment way?
A2:T/T, L/C at sight.
Q3:If you will send engineer coming to our factory to install and test the machines?
A3:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q4:If you have CE,SGS,ISO certificate?
A4:Yes,except these,if you also need other certificates,we also can help to apply.
Q5:If we buy your machines, can you offer us wear-out spare pats?
A5:Yes,We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q6:What is the voltage?
A6:380V 50hz 3 phase or any other voltage according to client's requirement.

---
