Factory Direct Sales Transformer Spot Supplies Control Precision Power Supply Resistance Welding Machine

Product Description

Product Description

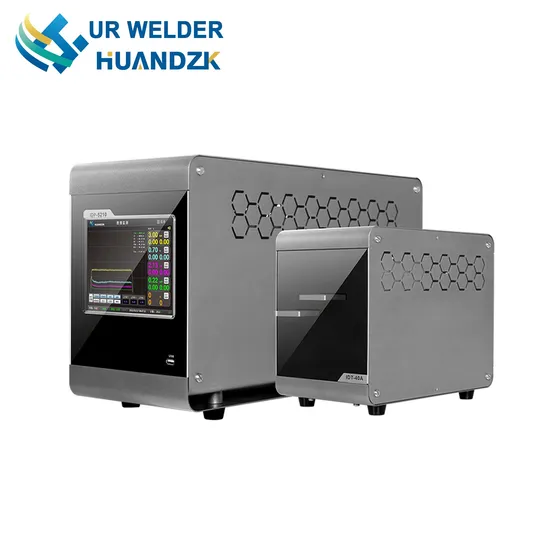

IDP series precision welding power supply is a high-frequency inverter DC power supply developed by us, the main components are imported to ensure product reliability and stability, while applying today's most advanced inverter power supply technology and dsp electronic control technology. This power supply has powerful welding quality control ability, data monitoring function and welding quality traceability function, at the same time has a high control accuracy (0.2 ms), small heat, small damage to the workpiece, welded joints good appearance, welding tensile strength, welding stability, welding defective rate is low and so on, and also supports the optional upper unit group network group control and real-time welding quality monitoring system.
Product Parameters
Power Supply Specifications:

Model		IDP-600	IDP-800	IDP-1000
Supply Voltage		3-phase 380V(50/60V)
Control Frequency		1kHz/2kHz/3kHz/4kHz/5kHZ
Max Output Current		600A(Primary)	800A(Primary)	1000A(Primary)
Rated Power		120KVA	170KVA	220KVA
Control Method		Constant Pulse Width/Constant Peak Primary/Constant Secondary Current/Constant Secondary Voltage/Constant Power/Hybrid Control
Number Of Welding Norms		256 Group Norms
Welding Time Setting	Pre-pressure Time	0-9999ms
	Pressurization Time	0-9999ms
	Slow Rise 1 Time	0-9999cyc
	Welding 1 Time	0-9999cyc
	Slow Down 1 Time	0-9999cyc
	Cooldown	0-9999cyc
	Slow Rise 2 Time	0-9999cyc
	Welding 2 Time	0-9999cyc
	Slow Down 2 Time	0-9999cyc
	Slow Rise 3 Time	0-9999cyc
	Welding 3 Time	0-9999cyc
	Slow Down 3 Time	0-9999cyc
	Holding Time	0-9999ms
	Rest Period	0-9999ms
	Finish Time	0-9999ms
	Number Of Cycles	0-9
Setting Range For Secondary Current		0.1-25.00KA	0.2 - 35.00KA	0.3 - 45.00KA
Setting Range Of Pulse Width		1%-100%
Setting Range For Secondary Voltage		0.02-10V
Size		578*305*600mm
Weight		40KG
Matching Transformer		IDT-925C	IDT-935C	IDT-945C
Communication Method		RS-232/RS-485/Ethernet , etc.
Cooling Method		Water cooling	Water cooling	Water cooling

Transformer Specifications:

Model	IDT-925C	IDT-935C	IDT-945C
Supply Voltage	PWM 500V	PWM 500V	PWM 500V
Rated Power	120KVA	170KVA	220KVA
No load secondary voltage	9.1V	11.3V	11V
Max. Utilization Rate	25000A(5%)	40000A(10%)	50000A(5%)
Cooling Method	Water cooling	Water Cooling	Water Cooling
Input Frequency	1-5kHz	1-5kHz	1-5kHz
Transformer Volume Ratio	55:1	44:1	55:1
Sizes	268 * 160 * 125mm	334 * 160 * 125mm	343 * 146 * 106mm
Weight	19 KG	19.5 KG	30 KG

Company Profile
Guangdong Ur Welder Co., Ltd. is a high-tech enterprise integrating R&D, manufacturing and sales of resistance welding systems and resistance welding peripherals, such as resistance welding power supply, precision spot welder, welding monitor, etc. All of the company's resistance welding products are independent research and development, with all the independent intellectual property rights.
Ur Welder 's creative team has more than ten years of experience in resistance welding industry, and now we have formed a strong R&D team with professors and doctors as the core. Ur Welder insists on investing a large amount of R&D funds every year to maintain the competitiveness of its products and to ensure the leading technical R&D strength.

Packaging & Shipping
FAQ
Q:What are your main products?
A : We are mainly engaged in resistance welding equipment and integrated molding equipment for sheet metal processing.
Q: Why should I buy from you instead of other suppliers?
A: With our efficient communication ability, ultra-professional service and skills, we can provide you with high-performance products at competitive prices.
Q: Can you provide manuals and related replacement parts for your products?
A : Yes, of course. We will send you the product manual and wearable parts with the machine.
Q: What is the estimated delivery time?
A : The overall lead time for standard products is about 15-30 days, while customized products are negotiated according to specific project conditions.
Q: Can you finish the machine during the delivery time?
A : We sincerely assure you that the machine will be made and traded within the determined delivery period.
Q: What are your payment options?
A : We usually recommend a 30% wire transfer deposit. After the machine is built, we will send you relevant photos and videos, and the balance will be paid before shipment.
Q: What is the warranty on your machine?
A: Our standard warranty is one year after shipment. If you wish to extend the warranty, there will be an additional charge.
Q: Can you do OEM production?
A : Yes, we warmly welcome customers to do OEM in our factory.

---
