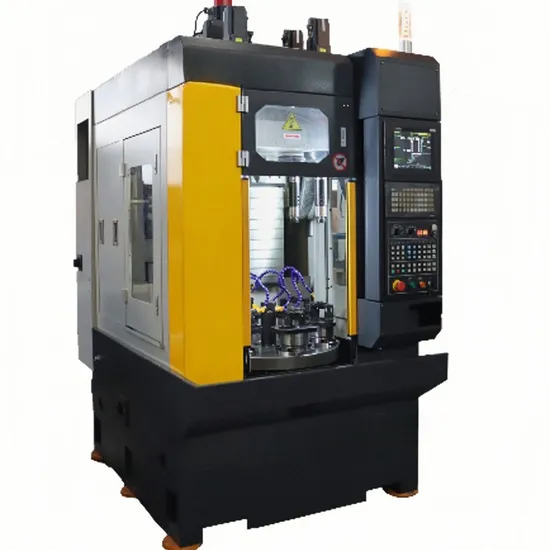

Efficient Vertical Automatic Reaming Honing Machine for Internal Grinding

Product Description

Product Description
product features

1. The main body of the machine tool is made of high-strength cast iron castings, which are subject to secondary aging treatment.
2. Spindle rotation of each axis is controlled by an independent servo motor to ensure accurate control of speed and torque.
3. The spindle reciprocating is controlled by servo motor, with high control accuracy and high processing efficiency.
4. The machine tool worktable adopts a precision rotary worktable, with accurate positioning and fast indexing speed.
5. Adopt CNC system control, stable and reliable, ISO standardized programming, easy to operate.
6. The cooling liquid is filtered by multistage filtration and forced cooling to ensure the processing accuracy and precision stability of parts.
7. Centralized lubrication system supplies oil intermittently to prolong the service life of sliding parts.
8. It can accurately control the geometric shape accuracy and surface roughness of the workpiece, and is suitable for high precision and mass processing requirements.

Main Components

Product Parameters

Items	SVHM06
Honing diameter	Φ5mm-Φ60mm
Max. stroke	400mm
Max. honing depth	200mm
Number of spindle	5-axis 6-station, 7-axis 8-station, 11-axis 12-station
Spindle rotation motor power	1kw/axis
Spindle stroke motor power	3.6kw/axis
Spindle speed	10-1000rpm
Stroke speed	2.5-25m/min
Workbench mode	Electric rotary table
Total power	20kva
Machine weight	3000kg
Overall dimension	2120×1100×2950mm
